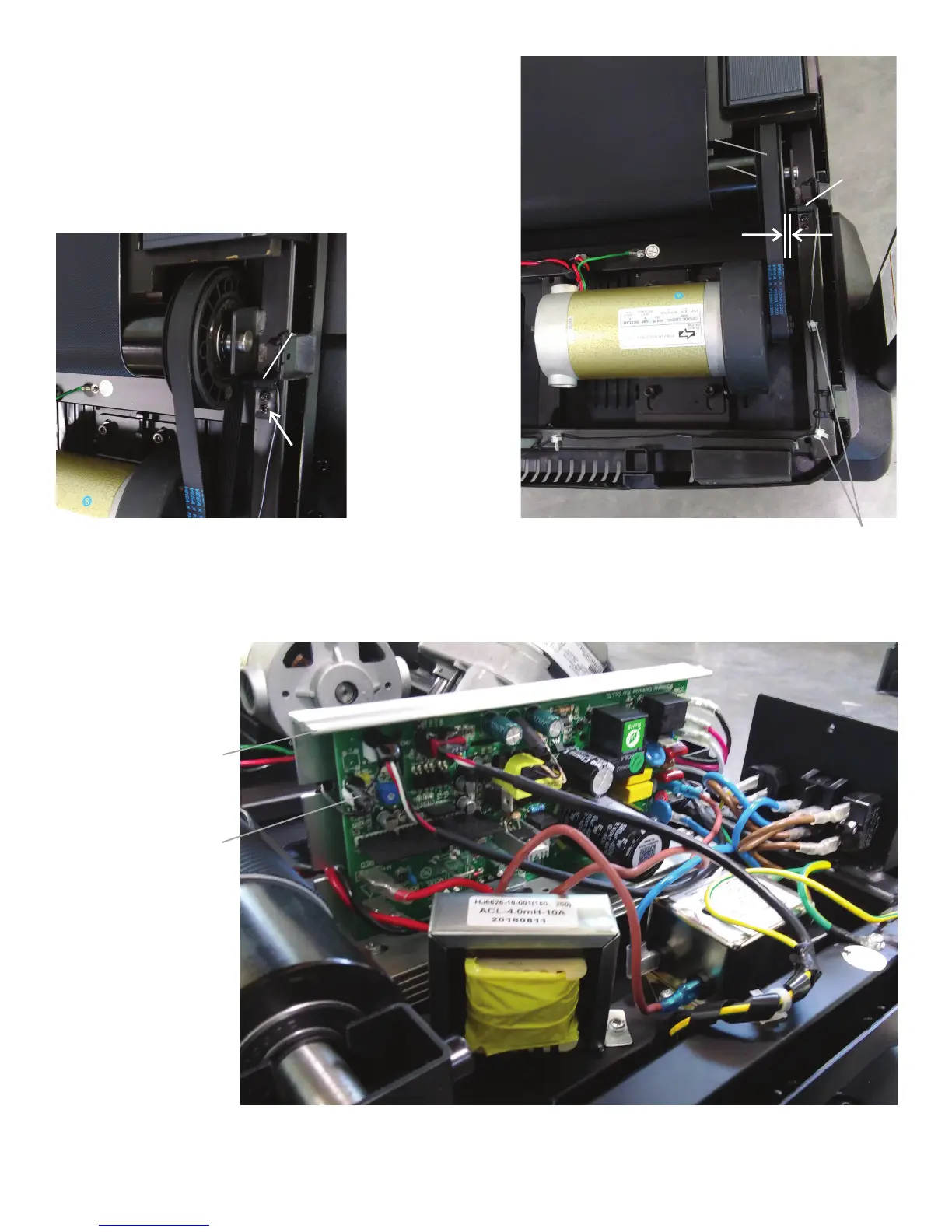

4. Using a #2 Phillips screwdriver, remove the 2 indicated screws (by ar-
row) that attach the Speed Sensor to the Frame near the Drive Pulley.
Note: Be sure to observe the distance from the Speed Sensor to the Drive
Pulley. This distance affects the effectiveness of the Speed Sensor and
will be used for the re-assembly process.
5. Cut the 4 Zip-Ties that secure the Speed Sensor Cable.
Speed Sensor Connector
Motor Control Board
(MCB)
Note: The above photo shows the BXT028 / BXT088 machine, with Choke and Filter included.
Drive Belt
Speed
Sensor
Drive Pulley
Speed Sensor Cable Zip-Tie
Speed
Sensor
