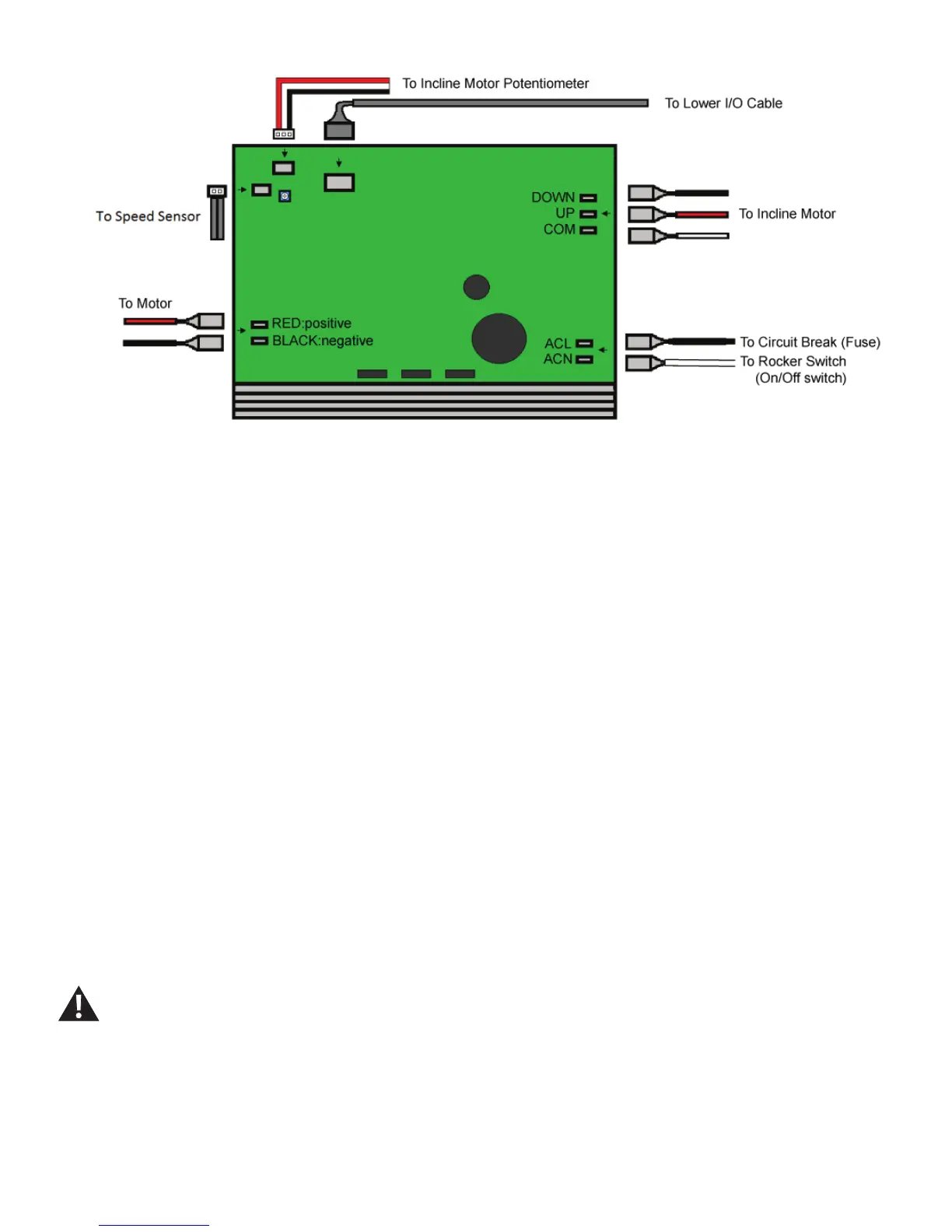

6. Remove the Speed Sensor Connector from the Motor Control Board.
7. Attach the new Speed Sensor Connector to the Motor Control Board.
8. Route the new Speed Sensor Cable along the Frame.
9.UsingreplacementZip-Ties,securetheSpeedSensorCabletotheFrameandtrimtheexcessfromtheZip-Ties.Be
sure not to cut the Speed Sensor Cable.
10. Using a #2 Phillips screwdriver, attach the new Speed Sensor and adjust it to be the same distance as the old Sensor
from the Drive Pulley.
11. Re-install all remaining parts that were removed in reverse order.
12. Final Inspection
Inspect your machine to ensure that all hardware is tight and components are properly assembled.
Do not use until the machine has been fully assembled and inspected for correct performance in
accordance with the Owner’s Manual.
