Bowflex BXT6 - Page 64

64
Note:Yourmachinemaynotmatchtheprovidedimagesexactly.

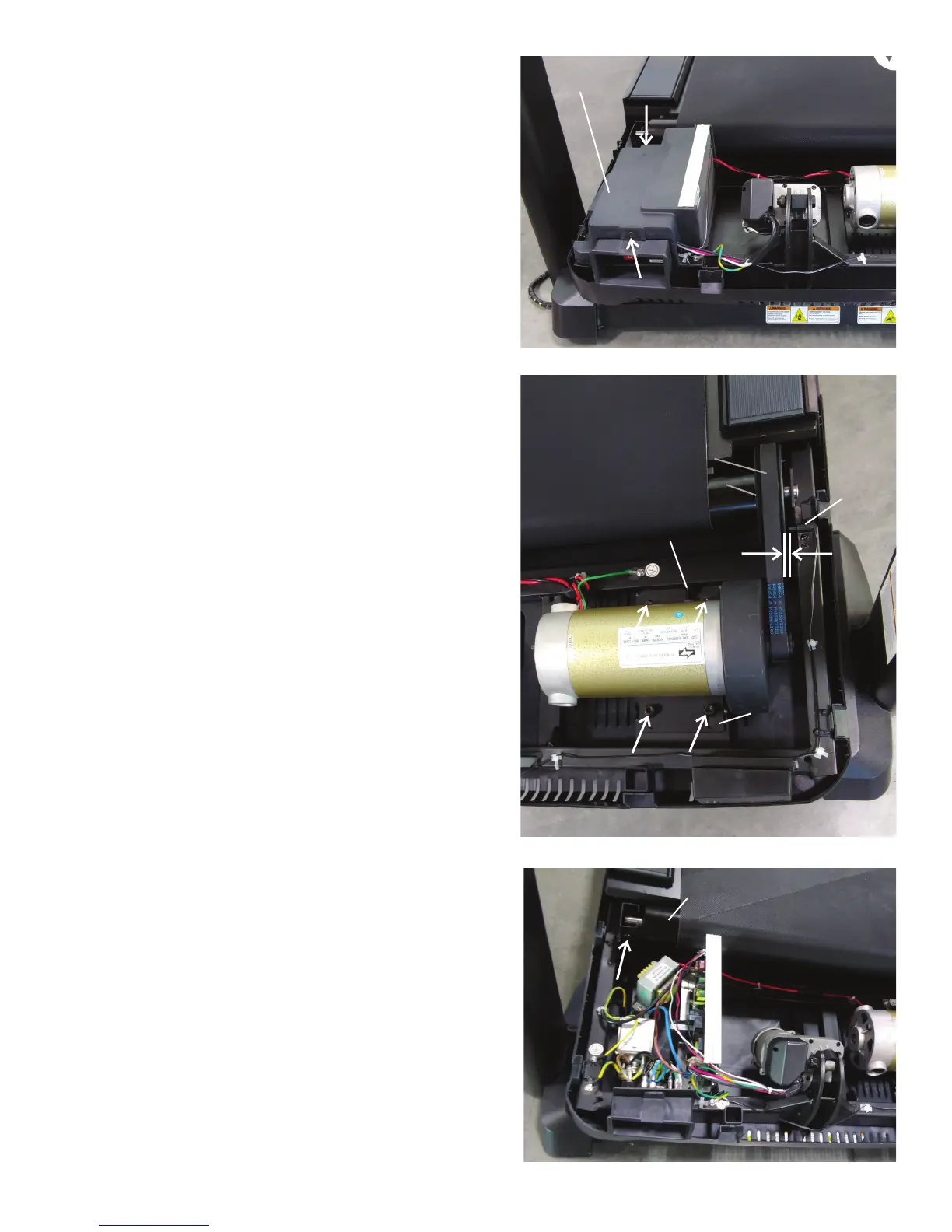

18. Using a #2 Phillips screwdriver remove the 2 indicated screws from
the MCB Cover and remove it.
19. Be sure to observe the distance from the Speed Sensor to the Drive
Pulley. This distance affects the effectiveness of the Speed Sensor, and
can easily be shifted accidentally during replacement procedures.
20.Usinga6mmhexwrench,loosentheindicatedscrewsontheMotor
Mount.
21. Using a 13mm Open Ended Wrench, rotate the Belt Tensioner Screw
enough to remove the Drive Belt from the Motor.
Note: To assist with reassembly, be sure to record the number of threads
exposedbeforeloosening.
22.Usinga6mmhexwrench,removetheindicatedscrewfromtheFront
Roller.
MCB Cover
Belt Tensioner Screw
Drive Belt
Motor
Mount
Speed
Sensor
Drive Pulley
Front Roller
