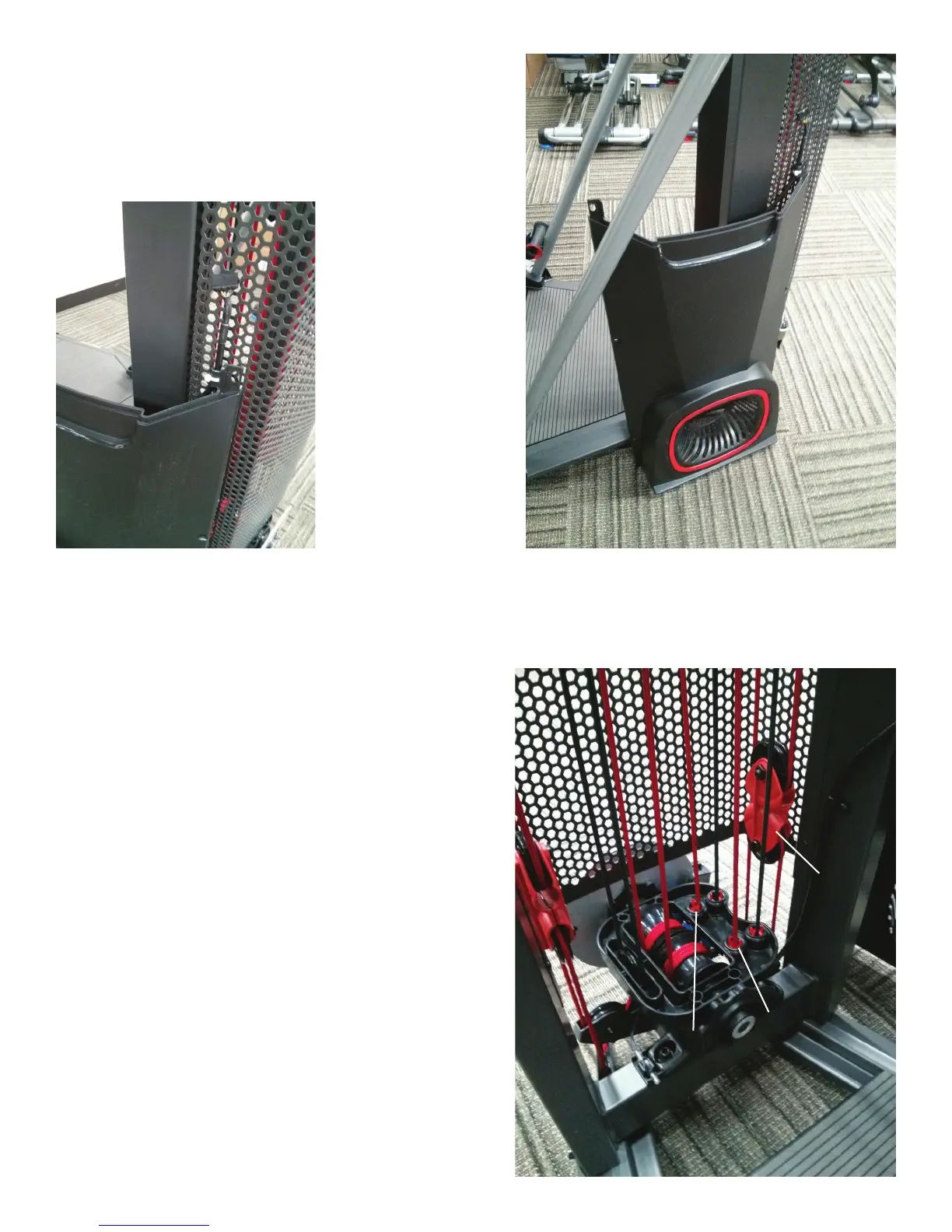

6. The Fan Assembly Shroud has the Lower Cable secured to the
upper right corner. Slightly pivot the Fan Assembly Shroud to the right
side of the machine without damaging the Lower Cable.
Note: Procedure is the same for each of the Load-Bearing, Floating
Pulleys. The Fan is removed for clarity.
Right Rope Stopper
Right Load-
Bearing, Float-
ing Pulley
Left Load-
Bearing,
Floating
Pulley
Left Rope Stopper
To Next Page
