Bowflex LateralX LX3 - Install Console Mast

Assembly / Owner’s Manual
12

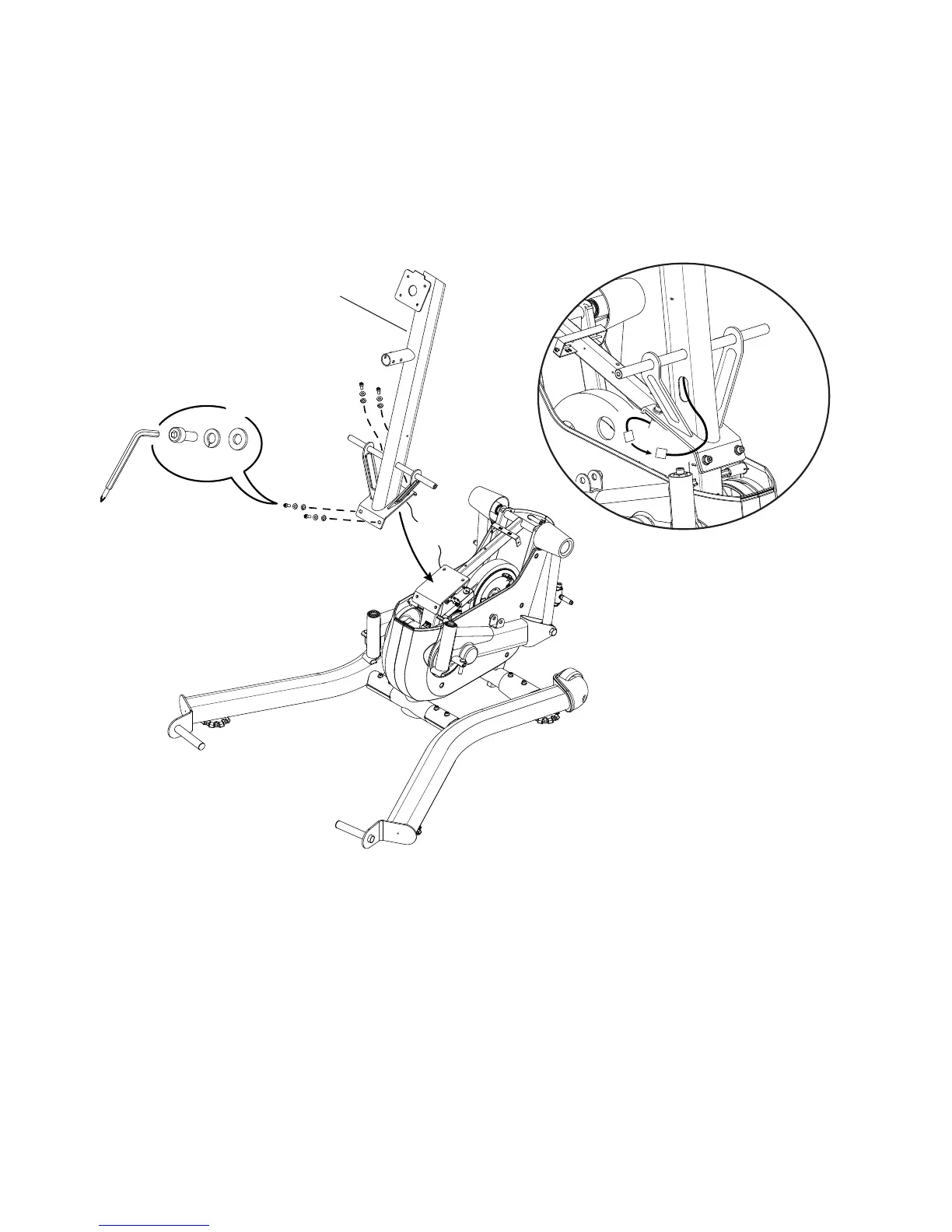

2. Install Console Mast to Frame Assembly
Note: $WWDFKWKH&RQVROH0DVWWRWKHEDVHPRXQWDQGFRQQHFWWKHEDVHFDEOHVWRWKHPDVWFDEOHV Do not fully tighten until all hardware
has been installed.
NOTICE: Do not crimp the Cables.
5
D
E
X4
6mm
O
