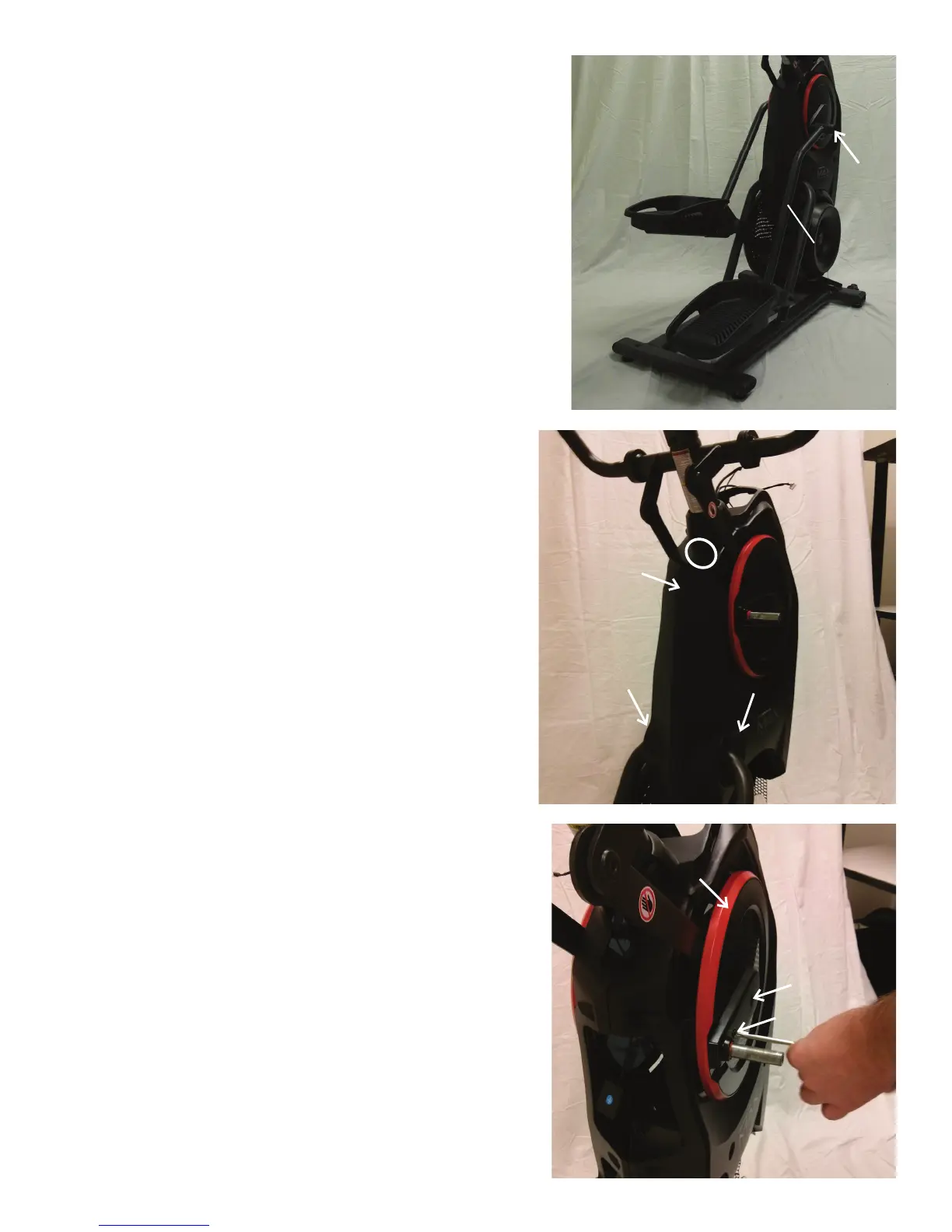

8. Remove the indicated Cap from the right side of the machine.
9. Using a 6mm hex wrench, remove the hardware exposed from below
the Cap from the machine.
10. Slide the Leg Assembly off of the machine.
11. Using a #2 Phillips screwdriver, remove the indicated screw from the
Rear Shroud.
12. Carefully remove the Rear Shroud from the machine. Place a standard
screwdriver behind and near the middle of the Rear Shroud and gently pry
until it releases. Then move the screwdriver to the bottom and gently pry
until the Rear Shroud comes off.
13. Remove the indicated Caps from the machine.
14. Using a #2 Phillips screwdriver, remove the 2 indicated screws from
the Right Crank Cover.
15. Remove the Right Crank Cover from the machine.
Cap
Cap
Rear Shroud
Crank Cover
Cap
Leg Assembly
To Next Page
