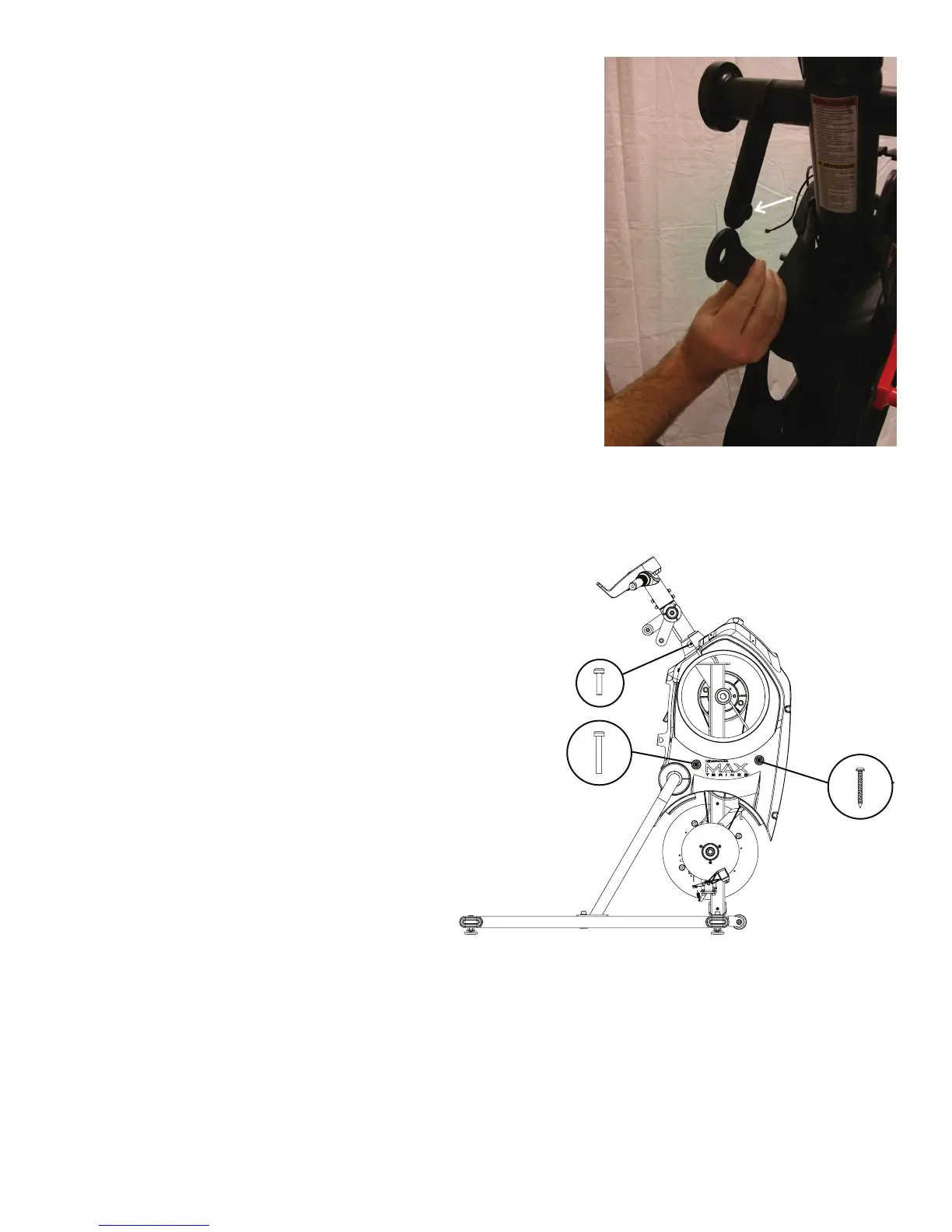

16. Place a rag or protective material below the Right Connec-
tor Arm to protect the Shrouds from potential scratches from the
Connector Arms.
Note: The image shows the Left Connector Arm.
17. Using a 6mm hex wrench, remove the hardware that con-
nects the Right Connector Arm and Pivot Arm.
Note: The Connector Arm will pivot downward if not lowered
slowly onto the rag protecting the Shrouds
Pivot Arm
Connector Arm
*
18. Using a #2 Phillips screwdriver, remove the screws from
the Right Shroud. ( 3 screws on the RIght Shroud) Remove
the upper screws labeled ‘ * ’ last.
