122

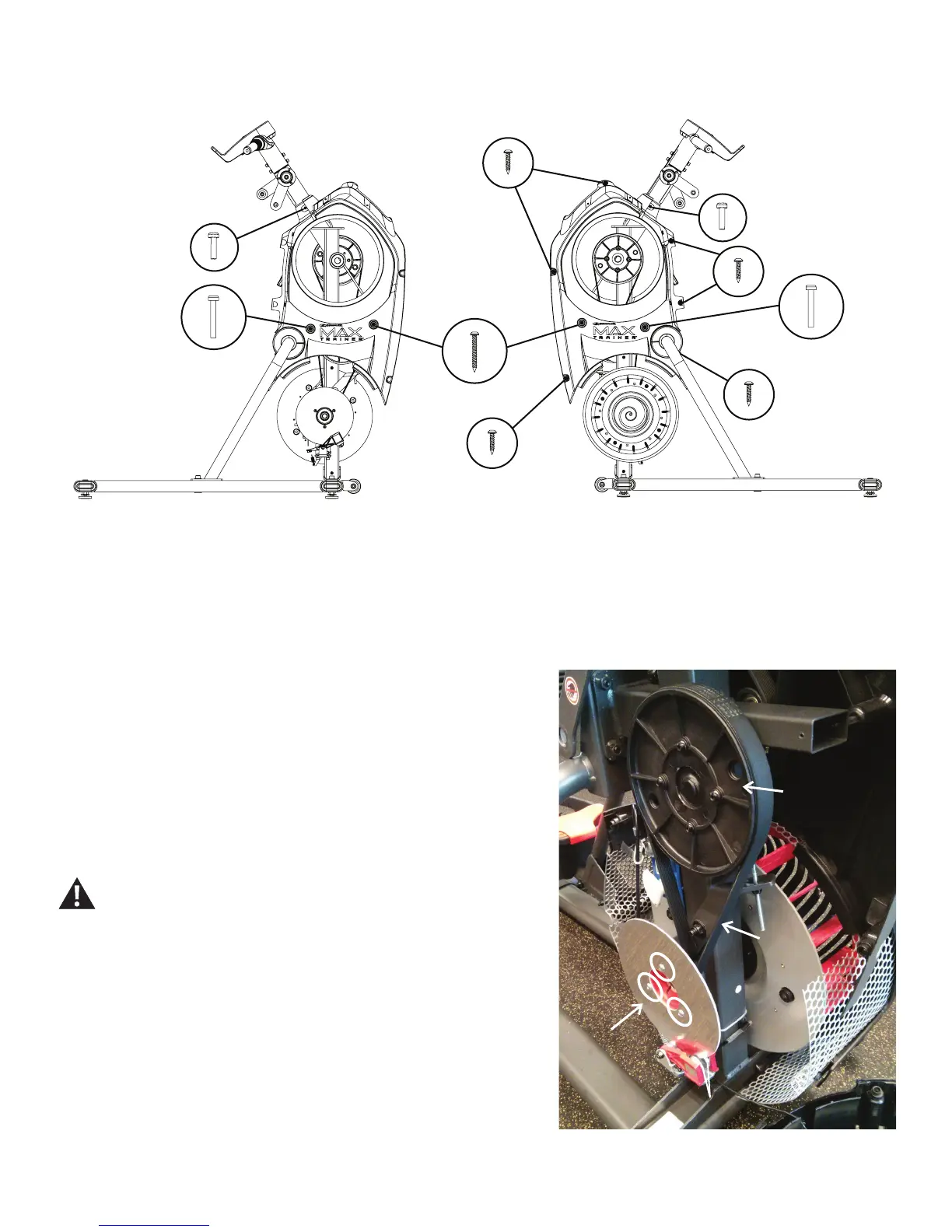

22. Place pieces of cardboard between the Brake Magnets and the Disc Brake.
23. Using a #2 Phillips screwdriver, remove the 3 indicated screws from the
Disc Brake.
24. Carefully remove the Disc Brake from the machine exposing the lower Fan
Belt.
25. Turn the Fan Pulley while forcing the Fan Belt to the outside. Belt will come
off of the Fan Pulley.
Keep ngers out of any pinch opportunities when removing the
Fan Belt.
Right Side Left Side
*
*
21. Using a #2 Phillips screwdriver, remove the screws from the Right and Left Shrouds. ( 3 screws on the Right Shroud, 9 on the Left Shroud)
Remove the upper screws labeled ‘ * ’ last.
Fan Belt
Disc Brake
Brake Magnets
Fan Pulley
