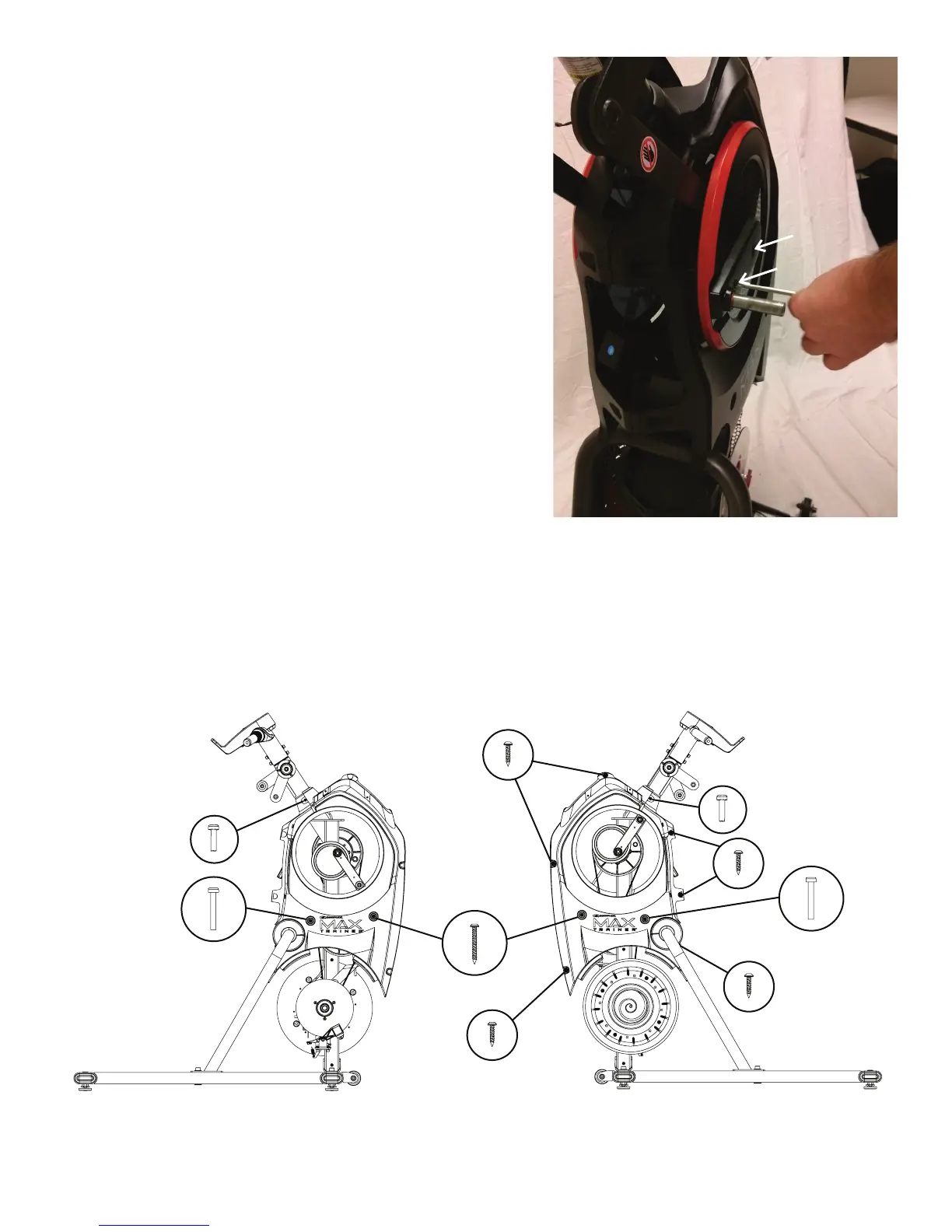

16. Using a #2 Phillips screwdriver, remove the 2 indicated
screws from the Crank Cover. Repeat on the other side of the
machine.
17. Remove the Crank Covers from the machine.
18. Using a #2 Phillips screwdriver, remove the screws from the
Right and Left Shrouds. ( 3 screws on the Right Shroud, 9 on the
Left Shroud) Remove the upper screws labeled ‘ * ’ last.
19. Place a rag or protective material below the Connector Arm to
protect the Shrouds from potential scratches from the Connector
Arms.
Right Side Left Side
*
*
To Next Page
