NOTICE: ThisdocumentprovidesinstructionsforthereplacementoftheWirelessHeartRateSensorontheBowexMaxTrainer
®
M3 / M5.
If you need assistance, please call Bowflex Customer Service at 1-800-605-3369.
Note: TheBowexMaxTrainer
®
M3 is used in the following images. The
procedure is the same for the M5 model.
1. Unplug the AC Adapter from the machine and wait 5 minutes.
2. Using a #2 Phillips screwdriver, remove the indicated screw from the
Rear Shroud.
3. Carefully remove the Rear Shroud from the machine. Place a standard
screwdriver behind and near the middle of the Rear Shroud and gently pry
until it releases. Then move the screwdriver to the bottom and gently pry
until the Rear Shroud comes off.
4. Remove the Caps from the machine.

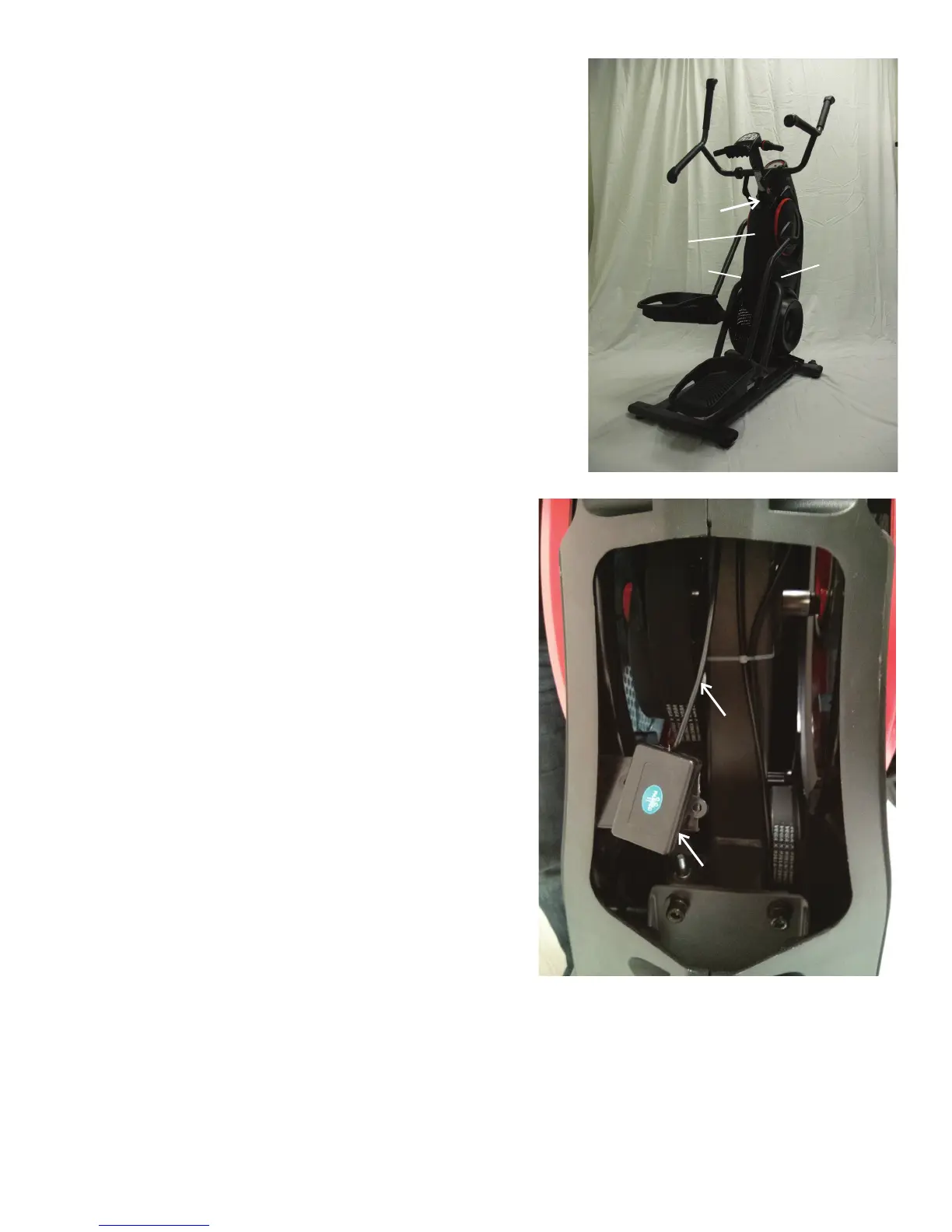

View of the exposed opening (behind Rear Shroud) showing the location
of the Wireless Heart Rate Sensor and Cable:
Wireless Heart
Rate Sensor
Rear Shroud
Cap
Cap
Wireless Heart
Rate Sensor Cable
