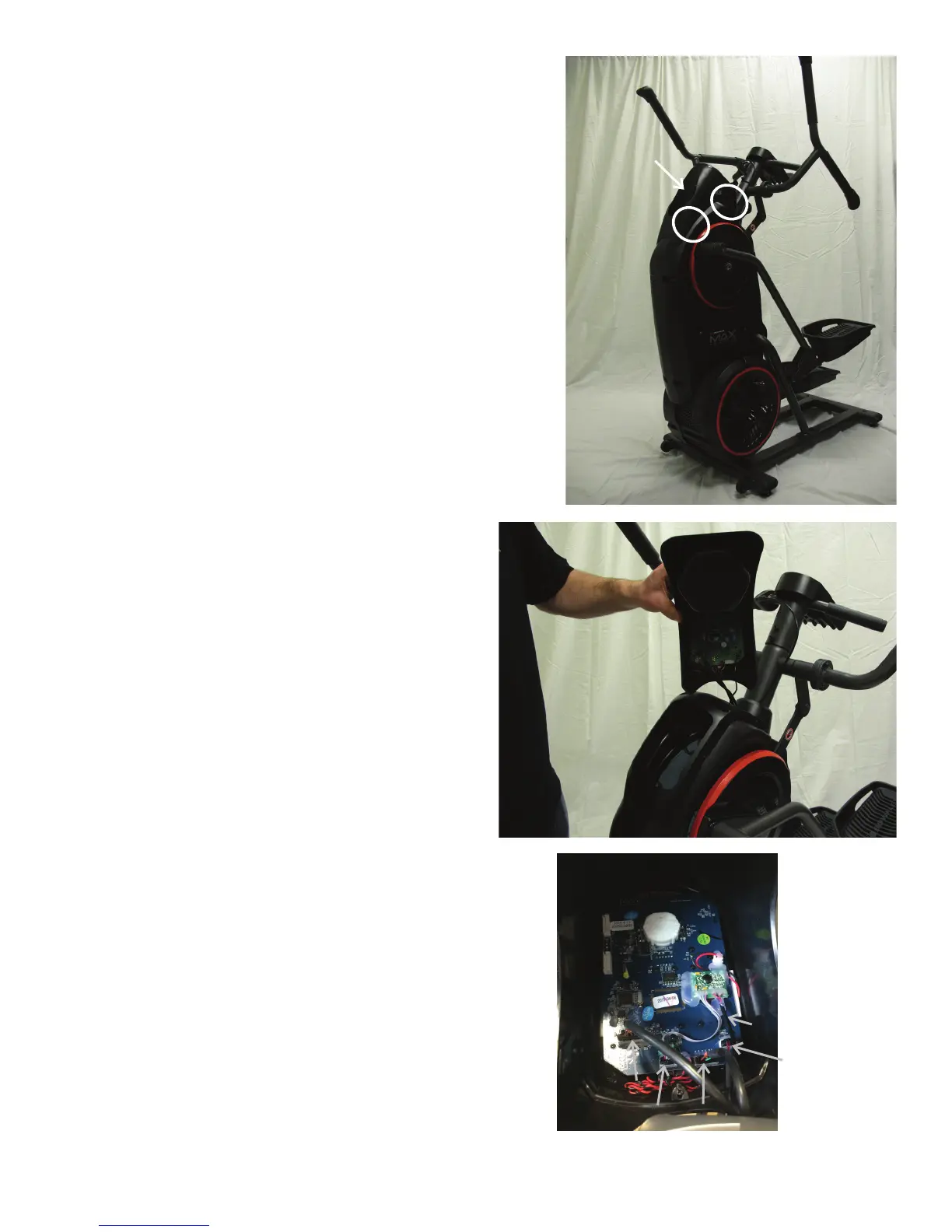

5. Using a #2 Phillips screwdriver, remove the 4 screws (2 indicated
on one side) from the Console Assembly.
6. Carefully lift the Console Assembly and expose the Cable Connec-
tions.
7. Carefully disconnect the Cables noting their locations (see arrows).
Note: do not crimp any of the Console Cables
8. Place the Console Assembly in a safe and secure location.
Console Assembly
Wireless Heart
Rate Cable
M5
only
To Next Page
