36

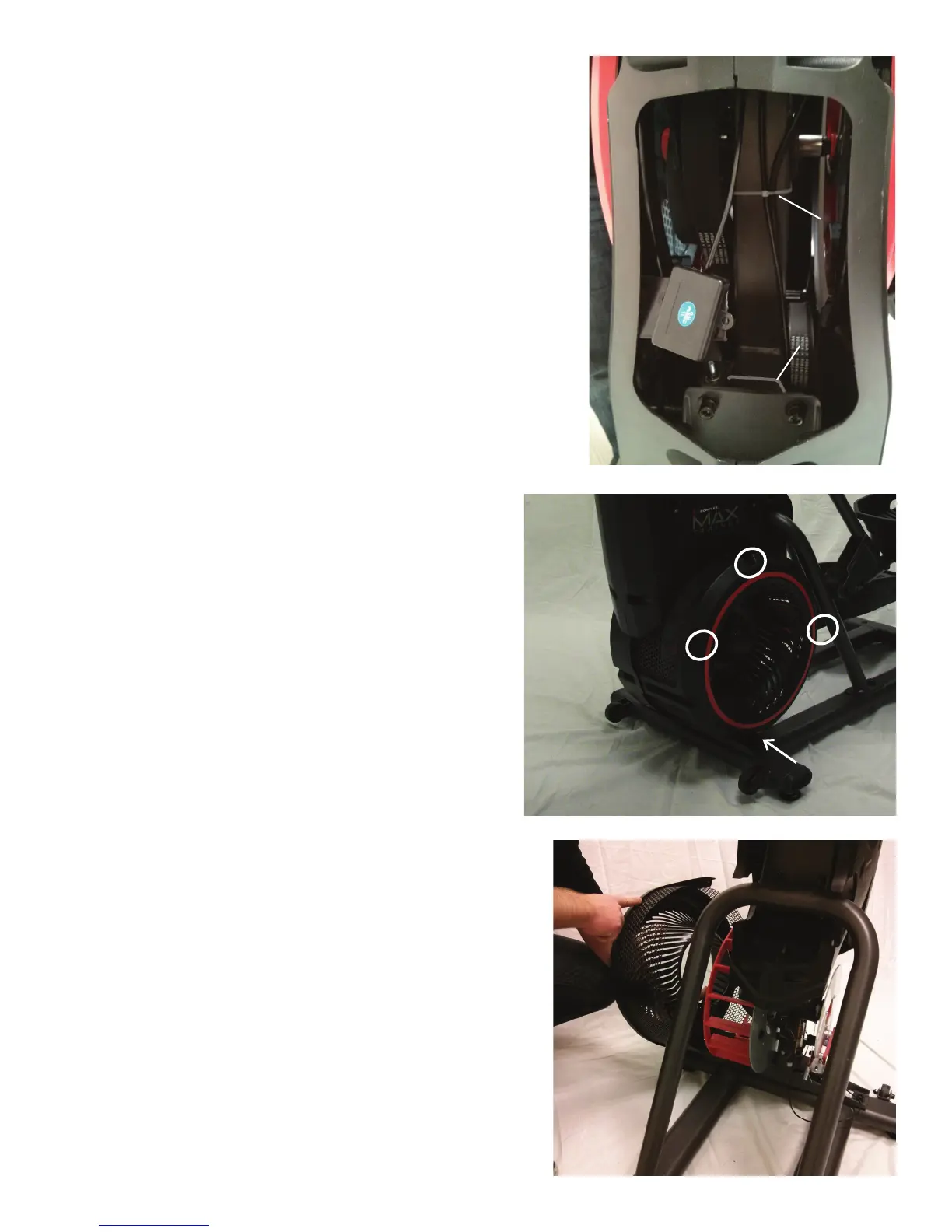

10. There are 2 Zip-Ties that are now exposed inside the machine. For
replacement purposes, note where they are attached and the Cables that
are affected.
11. Cut the Zip-Ties and remove them from the machine.
12. Using a #2 Phillips screwdriver, remove the indicated (by ovals)
screws and only loosen the lowest indicated screw (arrow) from the Left
Fan Cover.
13. The Left Fan Cover Assembly has a tab that needs to be pushed
upward to clear the loosened screw. While pushing up on the tab, remove
the Left Fan Cover Assembly.
14. Remove the Left Fan Cover Assembly from the machine. Be sure to
note how the fan screens are set into the Left Fan Cover to assist with the
replacement procedure.
Zip-Tie
Zip-Tie
To Next Page
