7. Place a rag or protective material below the Connector Arm to pro-
tect the Shrouds from potential scratches from the Connector Arms.

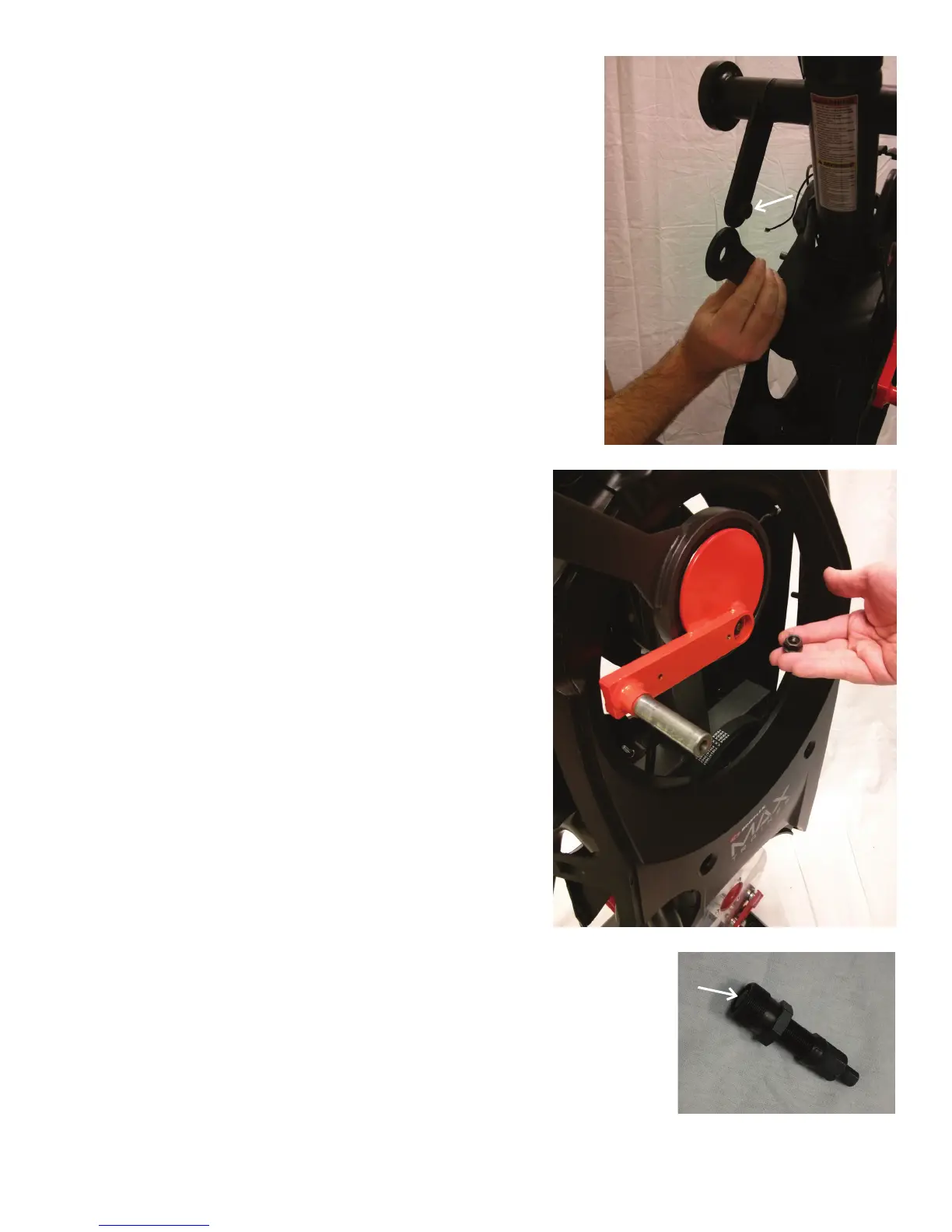

8. Using a 6mm hex wrench, remove the hardware that connects the
Connector Arms and the Pivot Arms.
Note: The Connector Arm will pivot downward if not lowered slowly
onto the rag protecting the Shrouds.
9. Using a 9/16” or 14mm socket and wrench, remove the nut from
the Crank Assembly.
10.AdjusttheCrankPulleruntiltheendoftheBoltisushwiththe
Nut (as shown).
Pivot Arm
Connector Arm
