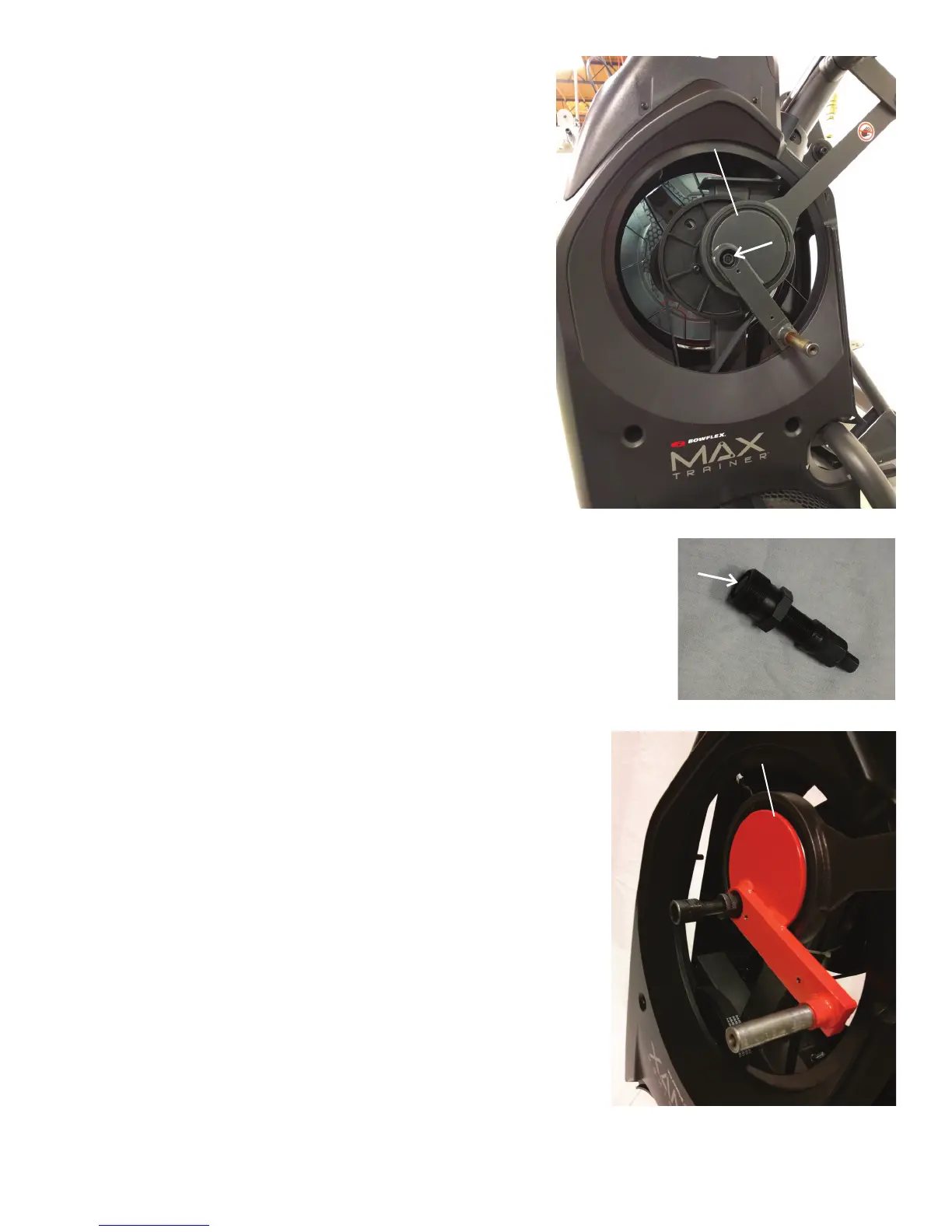

21. Using a 9/16” or 14mm socket and wrench, remove the indicated nut from
the Left Crank Assembly.
22.AdjusttheCrankPulleruntiltheendoftheBoltisushwiththeNut(as
shown).
23. Carefully thread the Crank Puller into the Left Crank Arm. Be sure the
Crank Puller has at least three rounds of threads inserted.
24. Using a 16mm wrench, turn the inner portion (the Bolt) of the Crank Puller
clockwise. The Left Crank Arm will slide off as it is tightened.
Note: Be aware that the Left Crank Arm will be loose and will need to be sup-
ported.
25. Remove the Crank Puller from the Left Crank Arm.
Left Crank Assembly
Left Crank Assembly
