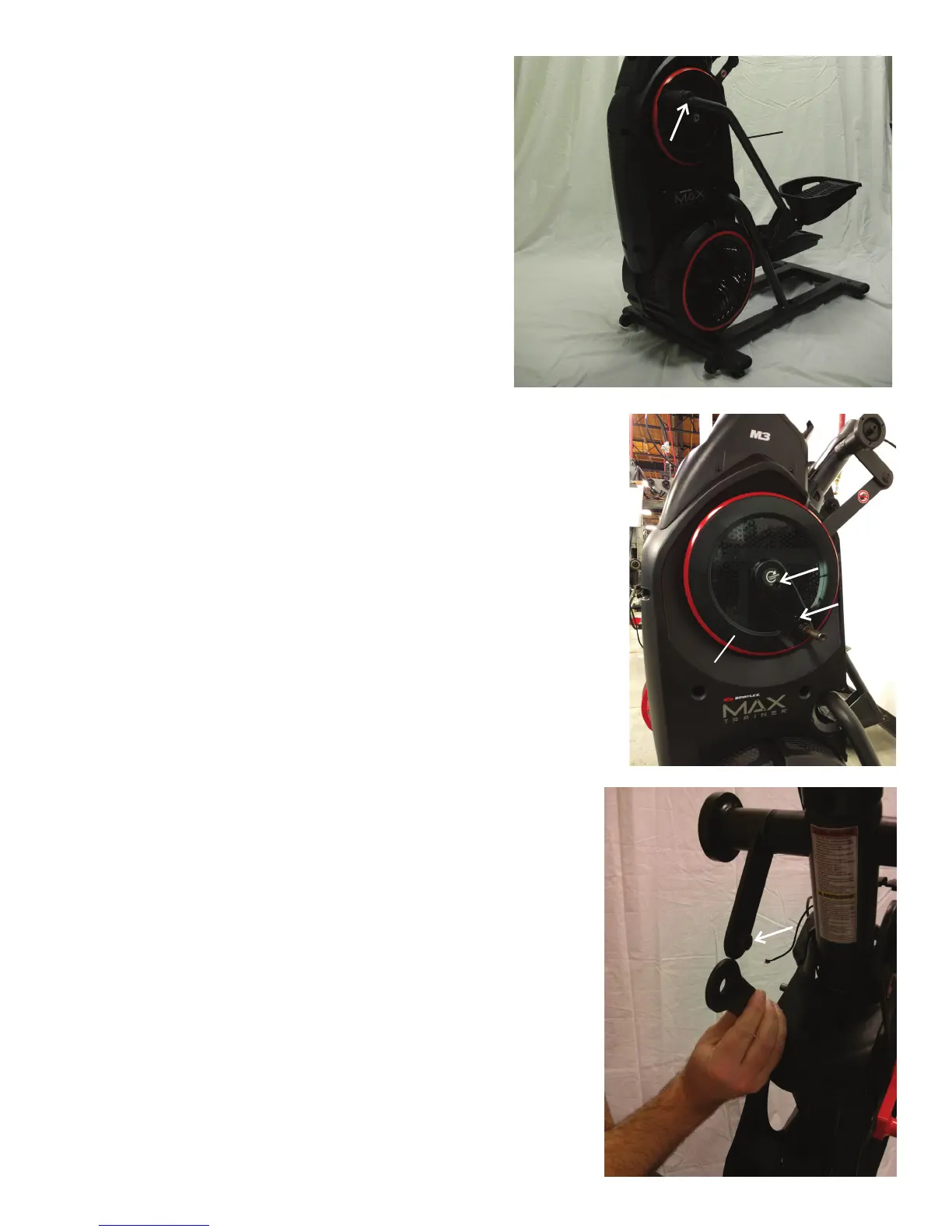

8. Remove the indicated Cap from the machine.
9. Using a 6mm hex wrench, remove the hardware exposed from
below the Cap.
10. Slide the Left Leg Assembly off of the machine.
11. Using a #2 Phillips screwdriver, remove the 2 indicated screws
from the Left Crank Cover.
Note: The image displays the Right Crank Cover being removed.
12. Remove the Left Crank Cover from the machine.
13. Place a rag or protective material below the Left Connector Arm
to protect the Shroud from potential scratches from the Connector
Arm.
14. Using a 6mm hex wrench, remove the hardware that connects
the Left Connector Arm and the Pivot Arm.
Note: The Connector Arm will pivot downward if not lowered slowly
onto the rag protecting the Shroud.
Cap
Leg Assembly
Pivot Arm
Connector Arm
Crank Cover
