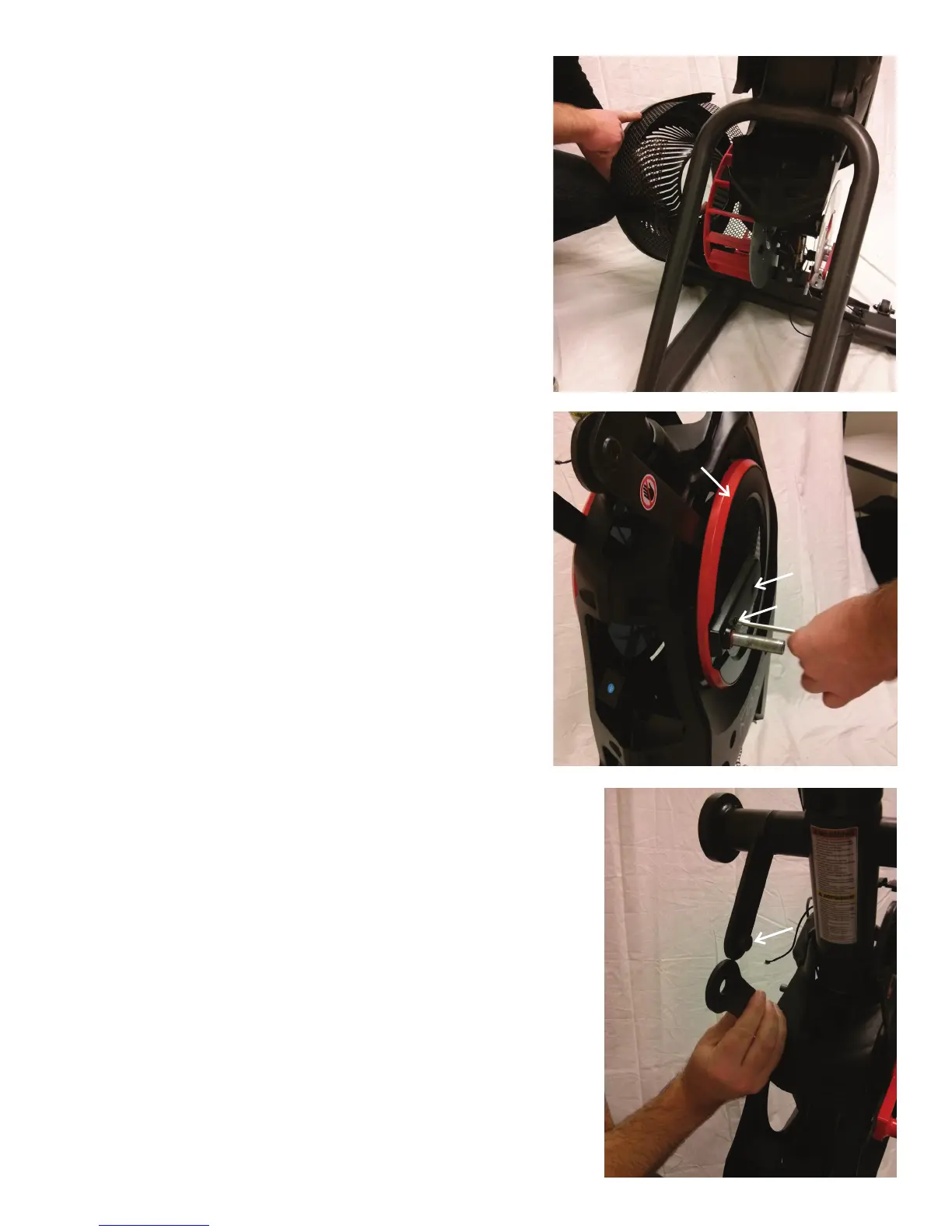

16. Remove the Left Fan Cover Assembly from the machine. Be
sure to note how the fan screens are set into the Left Fan Cover
to assist with the replacement procedure.
17. Using a #2 Phillips screwdriver, remove the 2 indicated
screws from the Crank Cover. Repeat on the other side of the
machine.
18. Remove the Crank Covers from the machine.
19. Place a rag or protective material below the Connector Arm to
protect the Shrouds from potential scratches from the Connector
Arms.
20. Using a 6mm hex wrench, remove the hardware that con-
nects the Connector Arms and the Pivot Arms.
Note: The Connector Arm will pivot downward if not lowered
slowly onto the rag protecting the Shrouds.
Pivot Arm
Connector Arm
Crank Cover
To Next Page
