77

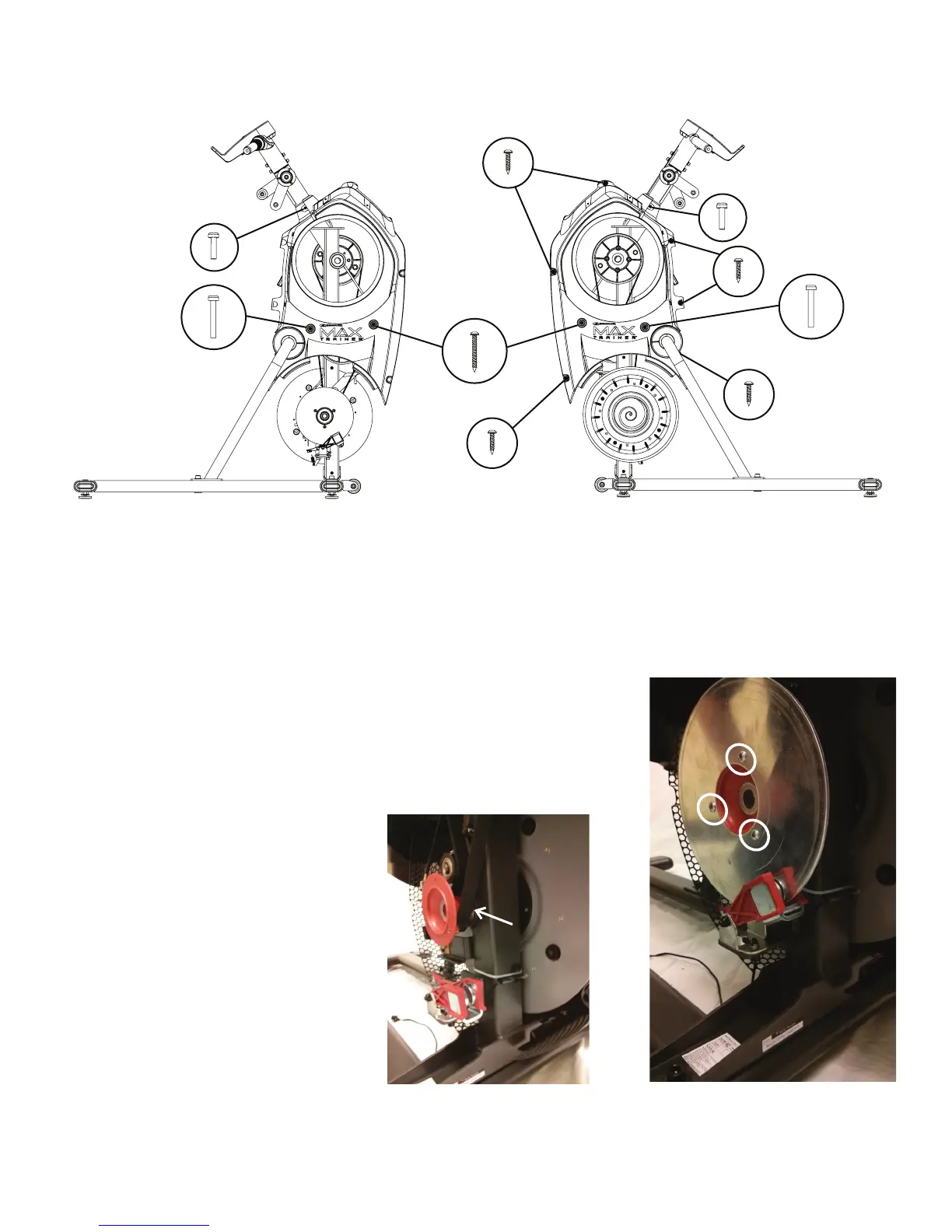

22. Place pieces of cardboard between the Brake Magnets and the Disc Brake.
23. Using a #2 Phillips screwdriver, remove the 3 indicated screws from the
Disc Brake.
24. Carefully remove the Disc Brake from the machine exposing the lower Fan
Belt.
Right Side Left Side
*
*
Disc Brake
Fan Belt
21. Using a #2 Phillips screwdriver, remove the screws from the Right and Left Shrouds. ( 3 screws on the Right Shroud, 9 on the Left Shroud)
Remove the upper screws labeled ‘ * ’ last.
To Next Page
