78
25. Note the number of exposed threads below the Tensioner Adjustment
Nut. This will assist with re-assembly.
26. Using a 10mm open face wrench, loosen the Tensioner Adjustment
Nut on the Tensioner Bolt until the old Fan Belt can be removed. Remove
the old Fan Belt and replace with the new Fan Belt.
Keep ngers out of any pinch opportunities when removing
the Fan Belt.
Note: If the Fan Belt Tensioner does not adjust as the Tensioning Bolt
is loosened, it may have been assembled too tightly. Slightly loosen the
securing screw to allow it to adjust.
27. Replace and tighten the Tension Adjustment Nut to the same location
on the Tensioner Bolt.
28. Installation is the reverse procedure excluding steps with the Crank
Puller.
29. Final Inspection
Inspect your machine to ensure that all hardware is tight and components
are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.

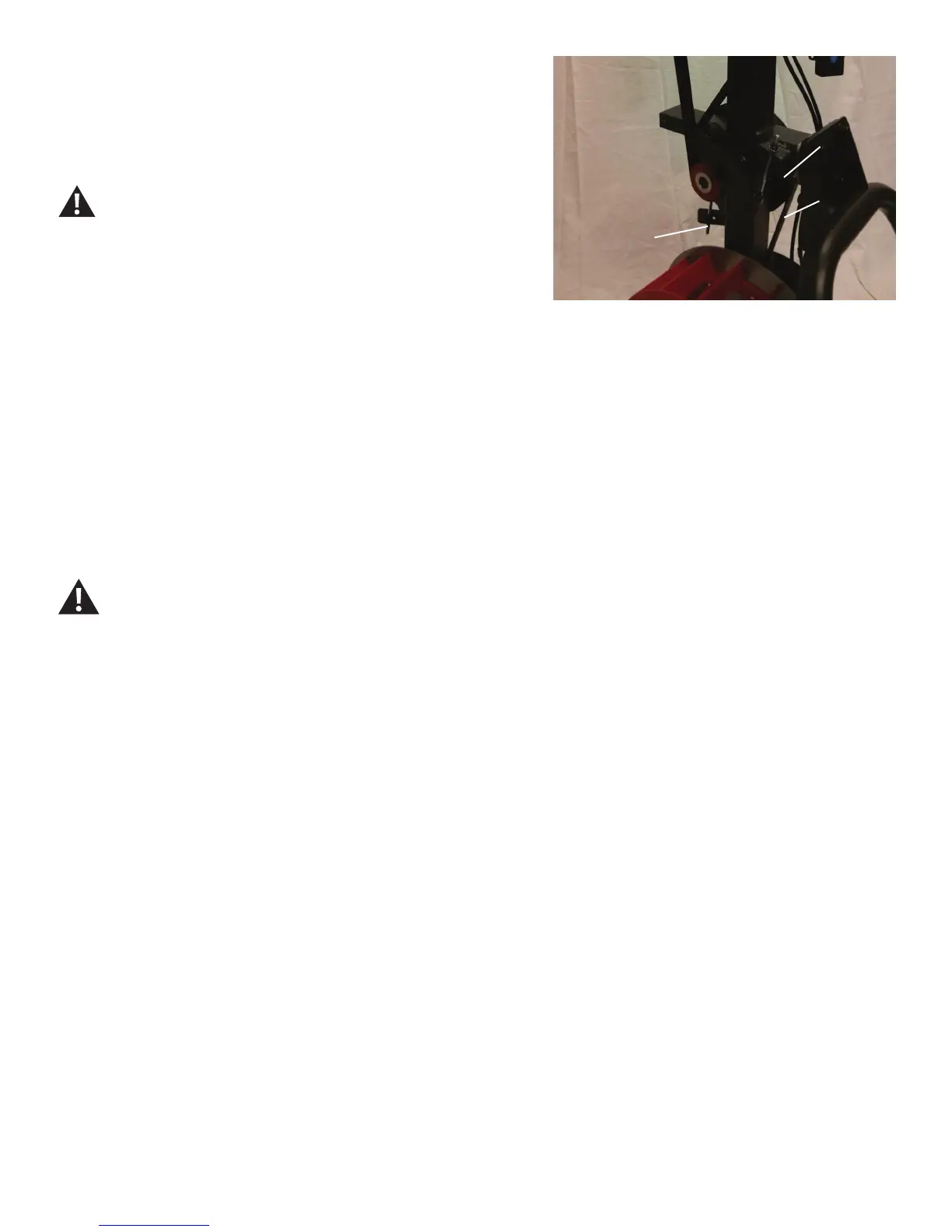

Fan Belt
Tensioner
Nut and Bolt
Fan Belt
Fan Belt
Pulley
