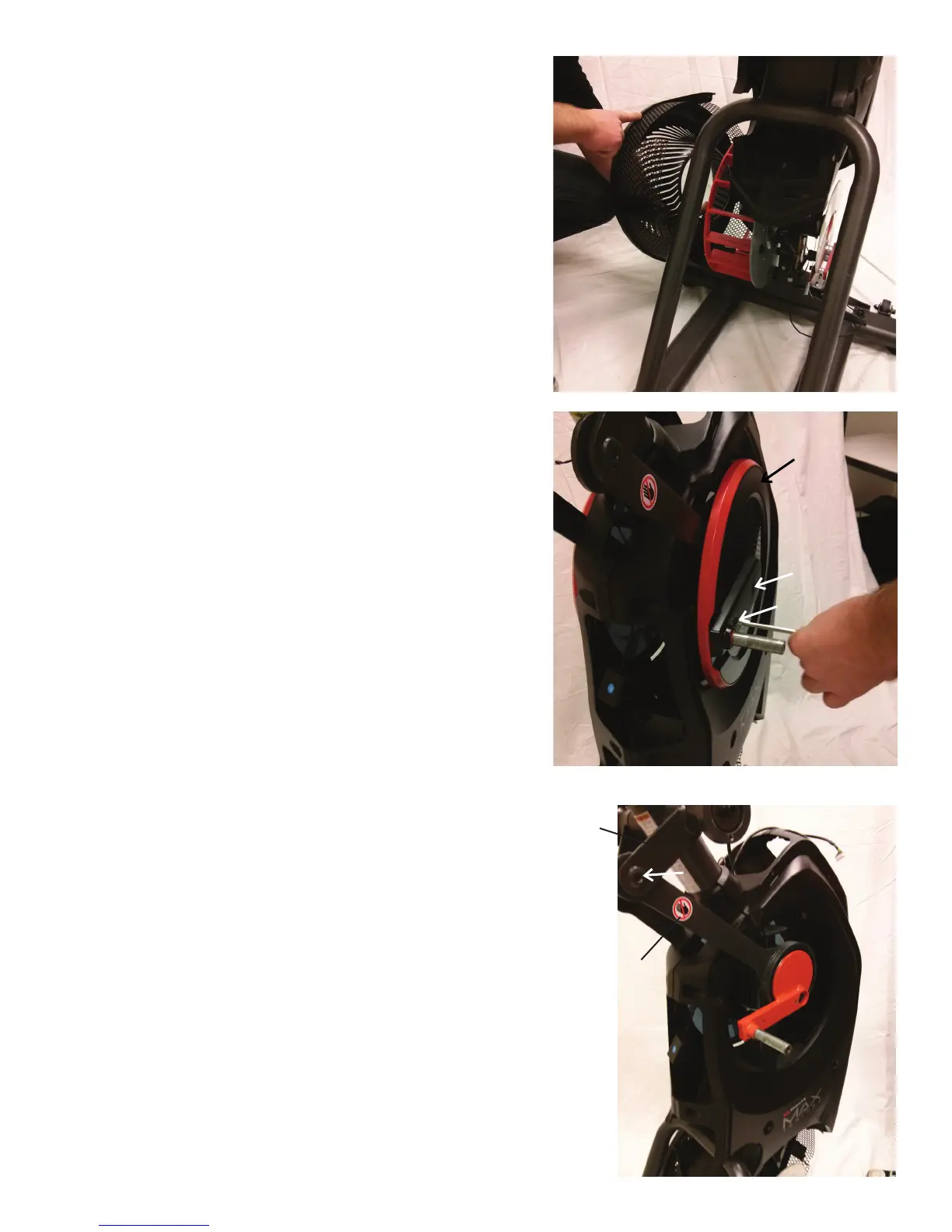

16. Remove the Left Fan Cover Assembly from the machine. Be
sure to note how the fan screens are set into the Left Fan Cover
to assist with the replacement procedure.
17. Using a #2 Phillips screwdriver, remove the 2 indicated
screws from the Right Crank Cover.
18. Remove the Right Crank Cover from the machine.
19. Place a rag or protective material below the Right Connec-
tor Arm to protect the Shrouds from potential scratches from the
Connector Arms.
20. Using a 6mm hex wrench, remove the hardware that con-
nects the Right Connector Arm and the Pivot Arm.
Note: The Connector Arm will pivot downward if not lowered
slowly onto the rag protecting the Shroud.
Pivot Arm
Connector Arm
Crank
Cover
