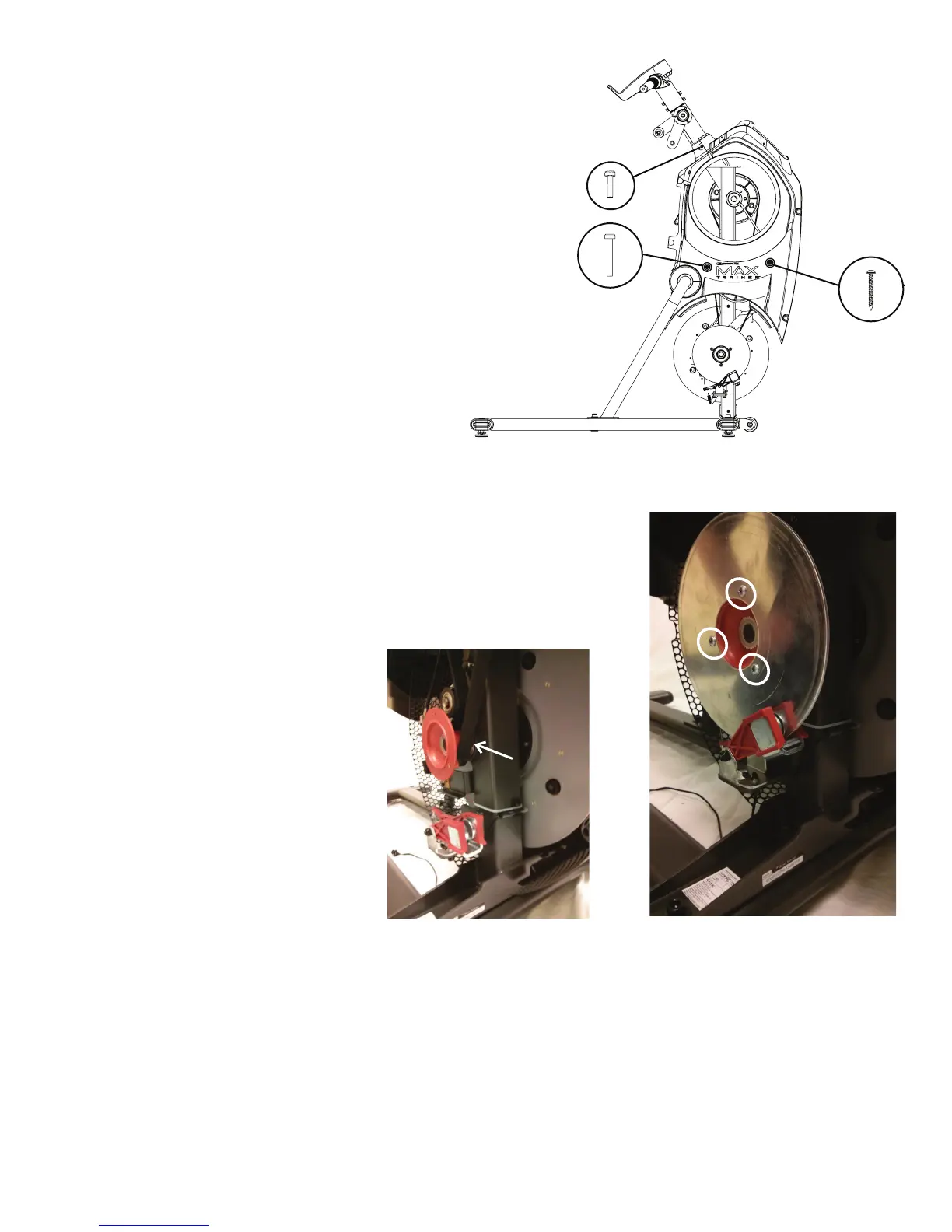

26. Using a #2 Phillips screwdriver, remove the screws from the Right
Shroud ( 3 screws on the Right Shroud). Remove the upper screws
labeled ‘ * ’ last.
27. Place pieces of cardboard between the Brake Magnets and the Disc
Brake.
28. Using a #2 Phillips screwdriver, remove the 3 indicated screws from
the Disc Brake.
29. Carefully remove the Disc Brake from the machine exposing the lower
Fan Belt.
Disc Brake
Fan Belt
*
