Bowflex Max Trainer M3 - Page 93

93
2
#2
X1
E
25. Fully tighten the hardware that attaches the Rail Assembly to the new
Frame Assembly (from Step 16), and then the hardware just installed to
theStabilizerAssembly.

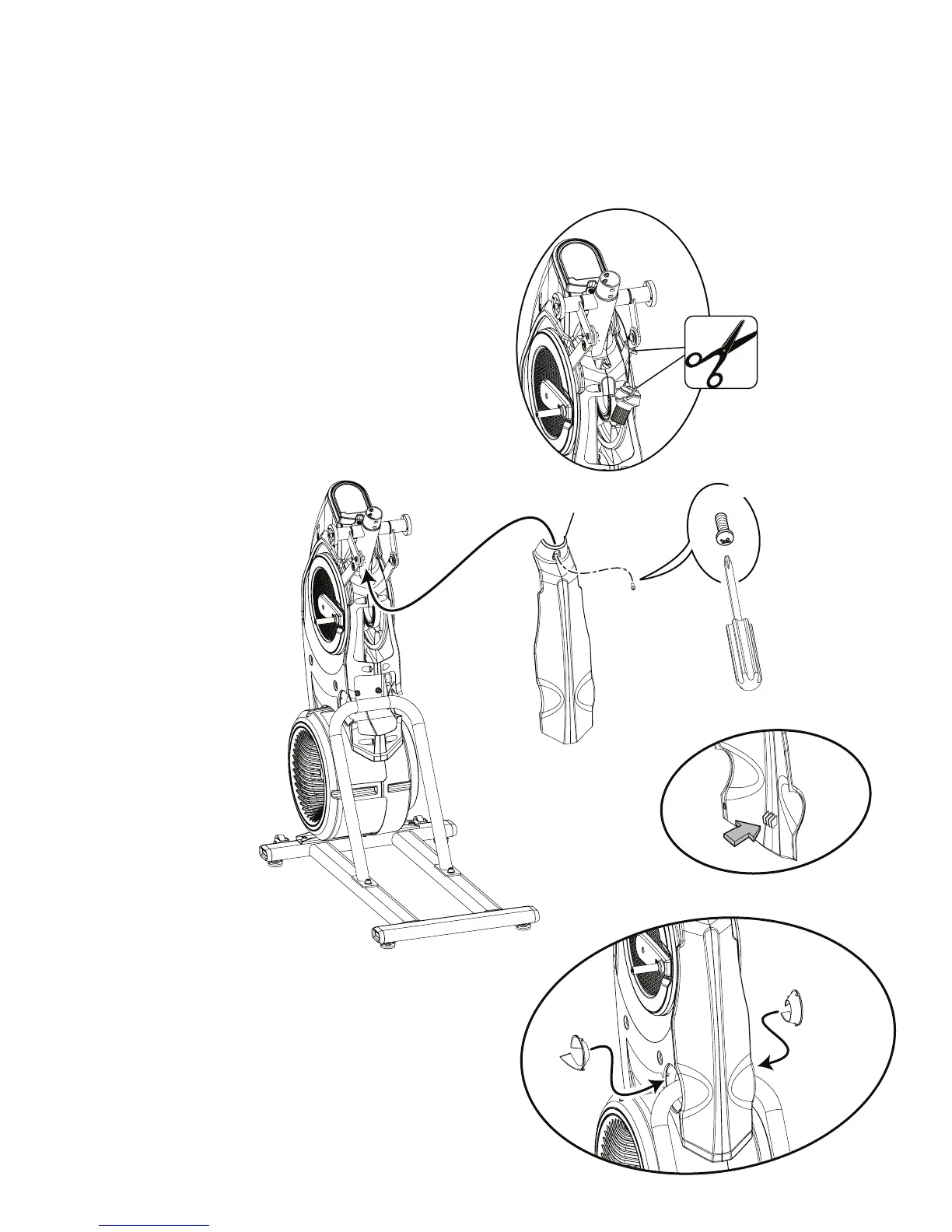

26. Reconnect the cables from the Console Assembly, and attach it to the
Frame Assembly with a a #2 Phillips screwdriver.
27. Cut the Shipping Zip-Ties and Attach the Rear Shroud and Caps to the
Frame Assembly
NOTICE: Place the inside hook of the Rear Shroud on the Frame Assem-
bly and then pivot it up into place.
2
#2
X1
E
