A second person is recommended to stabilize the Frame
Assembly.

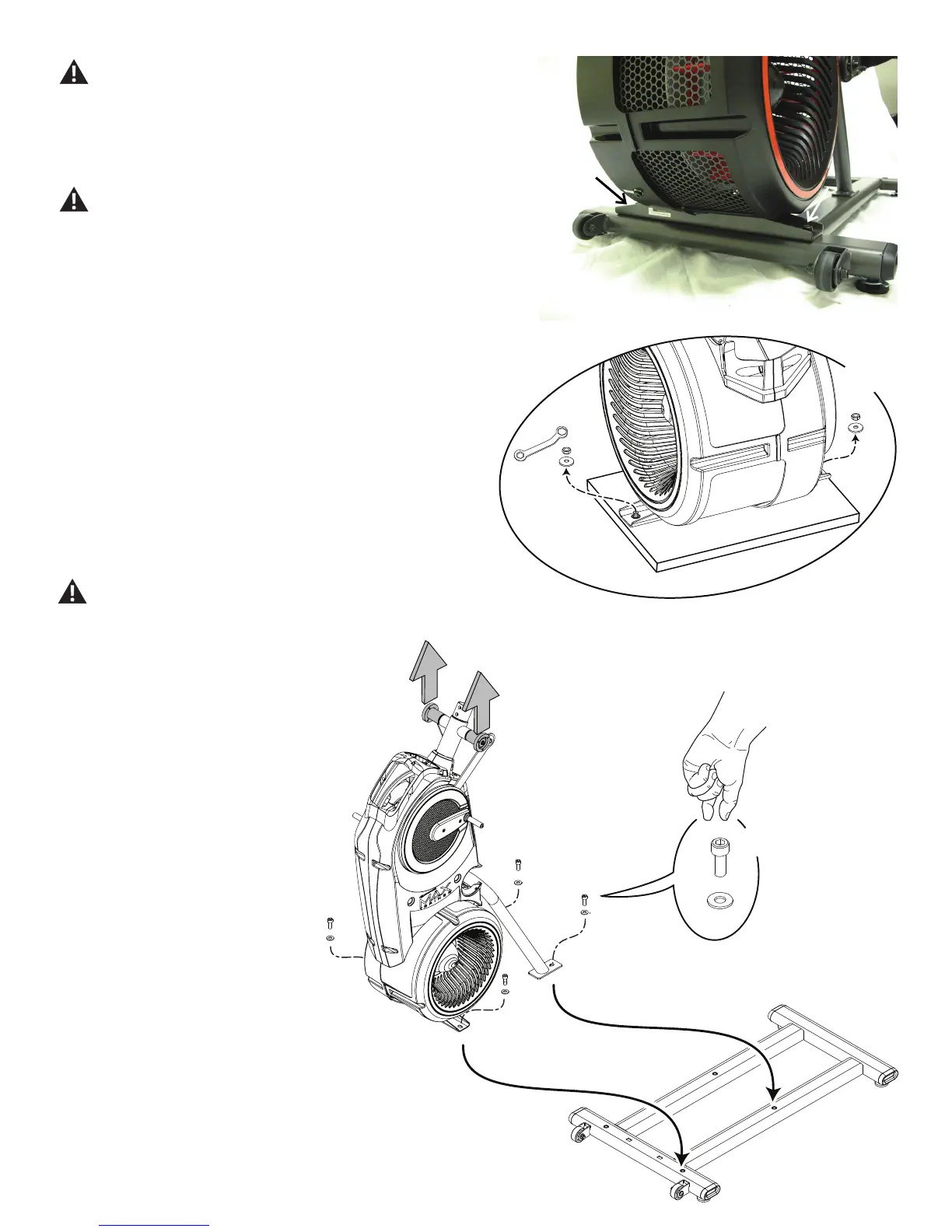

21. Using an 8mm hex wrench, remove the indicated hardware from the
old Frame Assembly. Be prepared to support the Frame Assembly before
removing the hardware.
The Frame Assembly may be awkward when released from the
Stabilizer Assembly. Some components of the machine can be
heavy or awkward. Use a second person to hold the Frame
Assembly stable and upright. Do not do steps that involve
heavy lifting or awkward movements on your own.
22. With the assistance of a second person, carefully lift the old Frame As-
semblyfromtheStabilizerAssemblyandplaceoutsidetheassemblyarea.
Toprotectyourooring,carefullyplaceitontoitssideonsomecardboard
I
J
X4
or a blanket.
23. Using a 13mm wrench, remove the hardware that secures the new Frame
Assembly to the shipping plate.
24.CarefullyLiftthenewFrameAssemblyandAttachIttotheStabilizerAs-
sembly
Some components of the machine can be heavy or awkward. Use
a second person when doing the assembly steps involving these
parts. Do not do steps that involve heavy lifting or awkward
movements on your own. Lift the
Frame Assembly from the exterior of
the pivot assembly as indicated
below.
13mm
X2
C
11
X4
N
D
1
