91

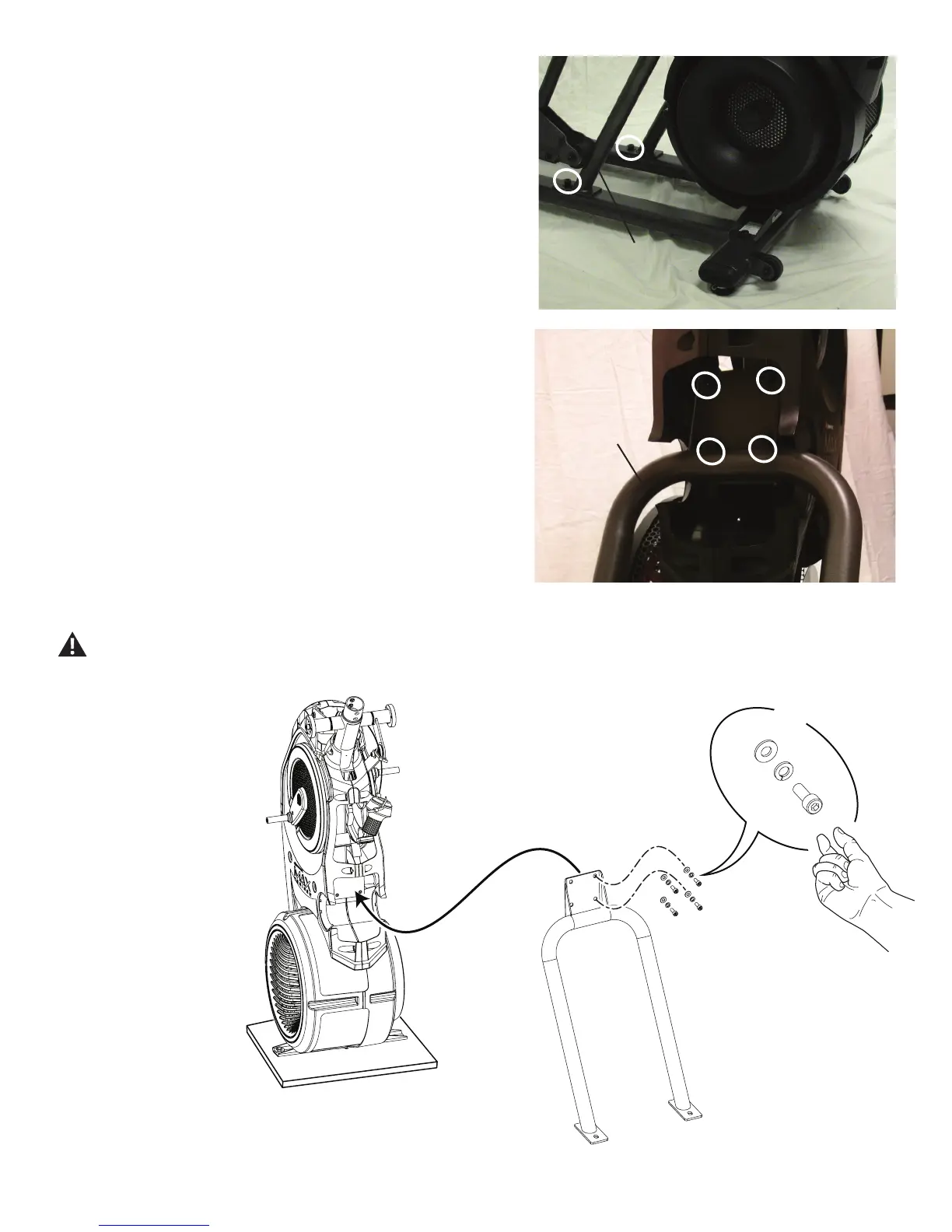

18. Using an 8mm hex wrench, remove the indicated hardware from the
Rail Assembly.
19. Using a 6mm hex wrench, remove the indicated hardware from the
Rail Assembly. Be prepared to support the weight of the Rail Assembly.
C
X4
N
D
20. Using new Hardware Items C, N, and D, attach the Rail Assembly to the new Frame Assembly.
Some components of the machine can be heavy or awkward. Use a second person when doing the assembly steps
involving these parts. Do not do steps that involve heavy lifting or awkward movements on your own.
NOTICE: Hand tighten hardware.
Rail Assembly
Rail Assembly
To Next Page
