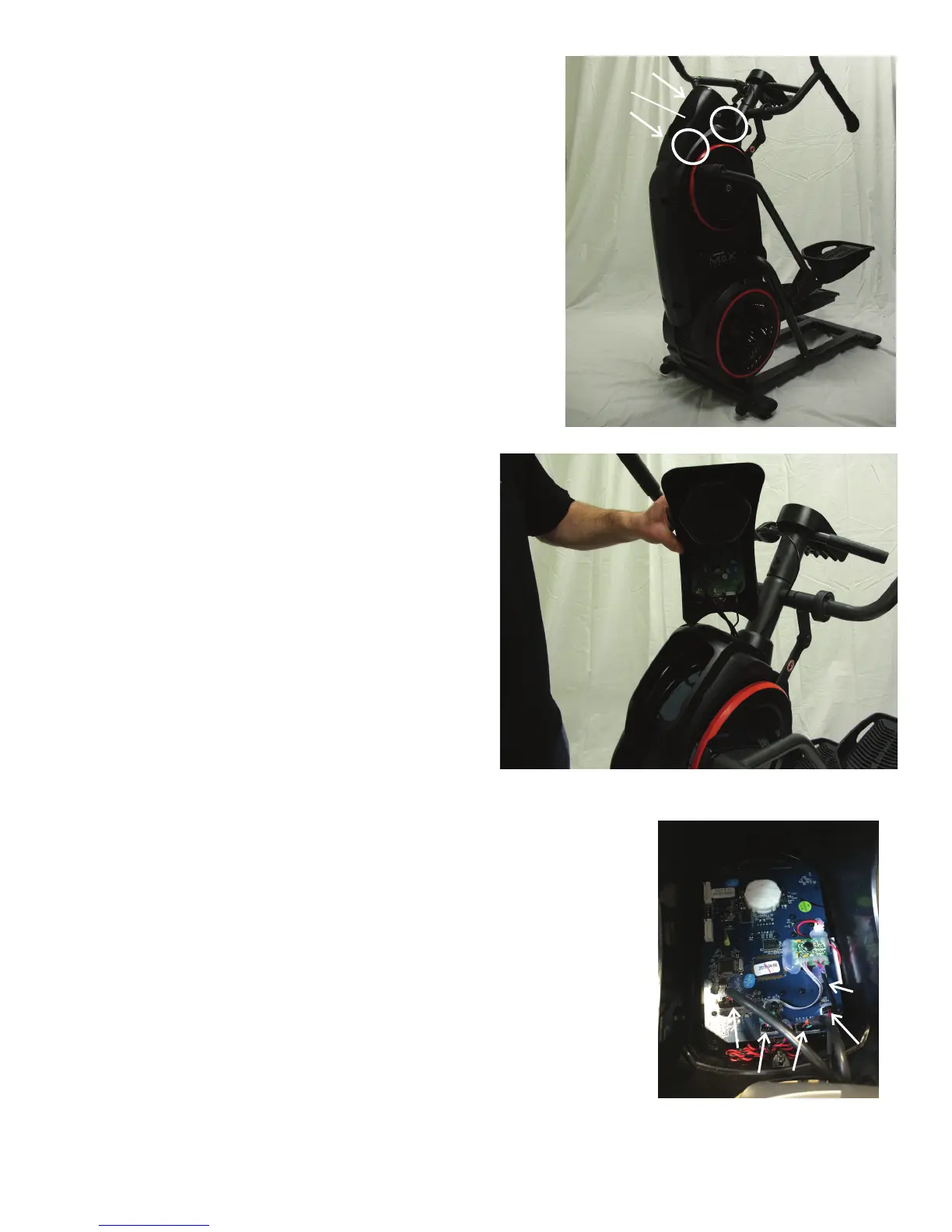

14. Using a #2 Phillips screwdriver, remove the 4 screws (2 on each side
of the Shroud) from the Console Assembly.
Note: Be sure to save hardware for re-assembly since these are not
included on the Hardware Card.
15. Carefully lift the Console Assembly and expose the Cable Connec-
tions.
Note: do not crimp any of the Console Cables.
16. Carefully disconnect the Cables noting their locations (see arrows).
Note: do not crimp any of the Console Cables.
17. Place the Console Assembly carefully out of the work area with the
removed hardware.
M5
only
Console
Assembly
