IfworkingonaBowexMaxTrainer
®
M5tnessmachine,skiptoStep12.
IfworkingonaBowexMaxTrainer
®
M3tnessmachine,continuetoStep
9.

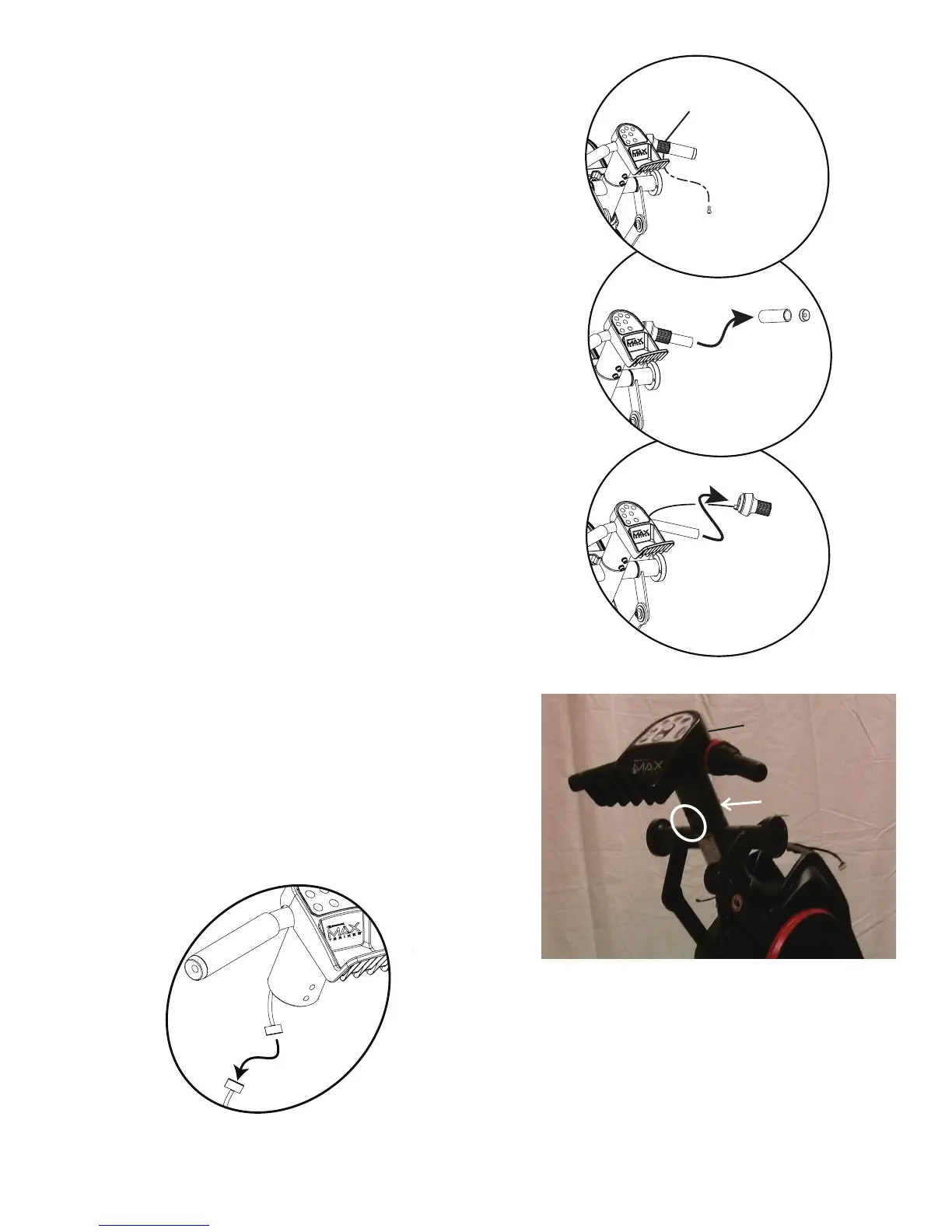

9. Using a #2 Phillips screwdriver, remove the securing screw from the
Shifter Assembly on the Right Static Handlebar.
10. Remove the Cap and Hand Grip from the Right Static Handlebar and
safely place outside the work area.
11. Slide the Shifter Assembly off of the Right Static Handlebar.
12. Using a 5mm hex wrench, remove the four indicated screws from the
Static Handlebar Assembly.
13. Slightly remove the Static Handlebar Assembly and disconnect the
cables. Carefully place the Static Handlebar Assembly outside the work
area.
Note: Do not crimp the Console Cables.
Static Handlebar
Assembly
5mm
X4
H
M
L
13
Shifter Assembly
