User’s Manual
6

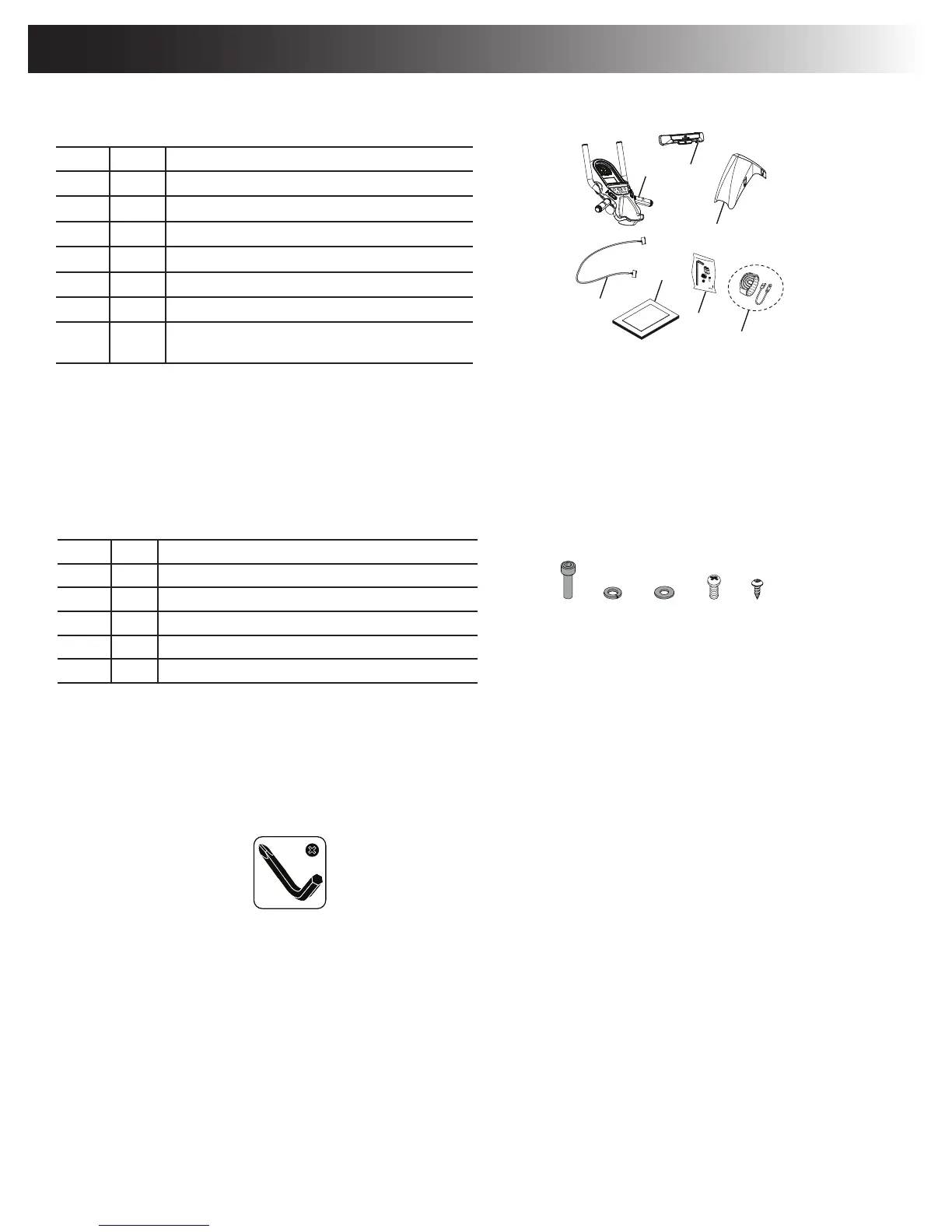

Parts / Hardware / Tools
Parts
Item Qty Description
1 1 Console Assembly (w/Aerobars)
2 1 Media Capture Bar
3 1 Upper Shroud
4 1 Upper Input/Output (I/O) Cable
5 1 Manual Kit
6 1 Hardware Bag
7 1 Bluetooth
®
Heart Rate Armband with Charging
Cable
6
1
5
3
4
2
7
Tools
Included #2
5 mm
Hardware
Item Qty Description
A 4 Socket Head Hex Screw, M6x1.0x20 Black
B 4 Lock Washer, M6x14.8 Black
C 4 Washer, Flat M6x13 Black
D 1 Pan Phillips Screw, M5x0.8x20
E 4 Phillips Screw, M4x12
Note: Select pieces of Hardware may have been provided as spares on the Hardware Card. Be aware that there may be remaining Hard-
ware after the proper assembly of your machine.
A B C D E
