106
Right
Structural
Shroud
Left
Structural
Shroud
Console
Cable
Grommet

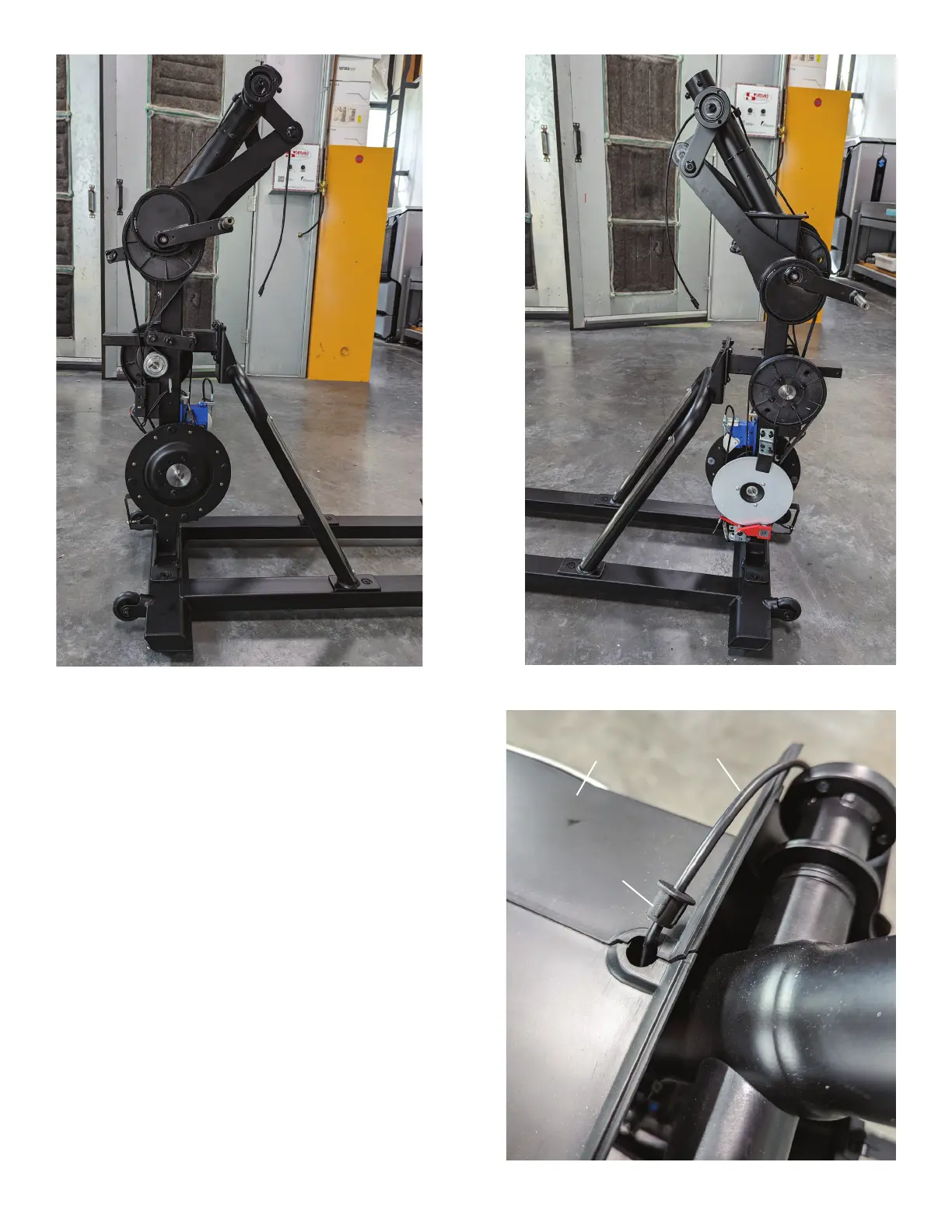

19. Place the new Structural Shrouds in place on
the Frame. Be sure that the Console Cable (or
Main Mast Cable) is routed through the opening
between the Structural Shrouds, and that the
Grommet is outside of the Shrouds.
Note: Do not cut or pinch the Console Cable.
20. Using a #2 Phillips screwdriver, attach the new
Structural Shrouds.
