107
21. Re-install all remaining parts that were
removed in reverse order.

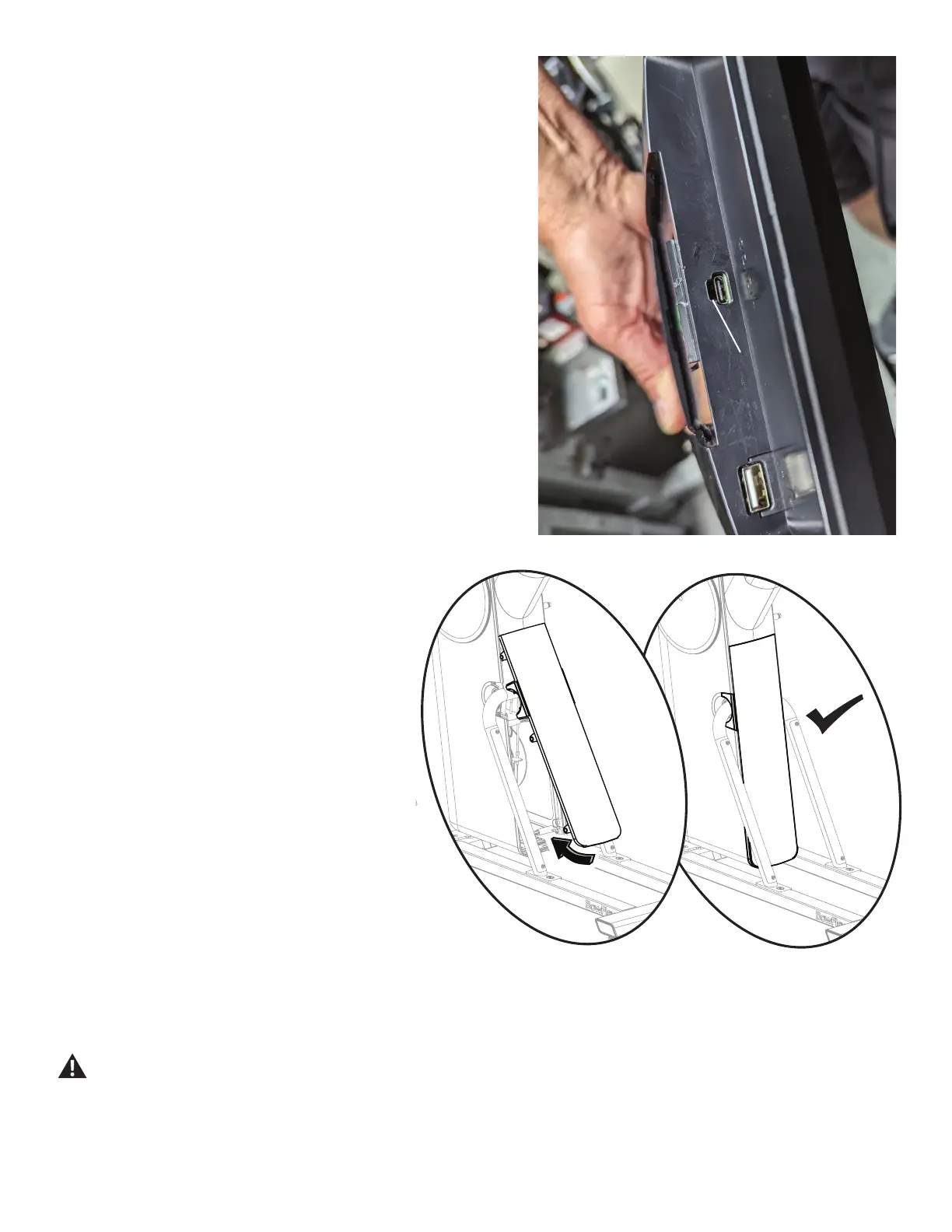

When re-connecting the Cable to the
Console, the Cable Connector has a tab that
can only be connected to the Console in one
orientation. Connect the Console Cable to
the Console in the proper orientation.
NOTICE: Do not cut or pinch the cable.
22. Final Inspection
Inspect your machine to ensure that all hardware is tight and components are properly assembled.
Do not use until the machine has been fully assembled and inspected for correct performance in
accordance with the Owner’s Manual.
Cable Connector
Tab
When re-installing the Rear Shroud to the
Frame Assembly, place the upper part of the
Rear Shroud onto the Frame Assembly. Then
pivot it downward into place. There are 6
tabs that will secure it.
