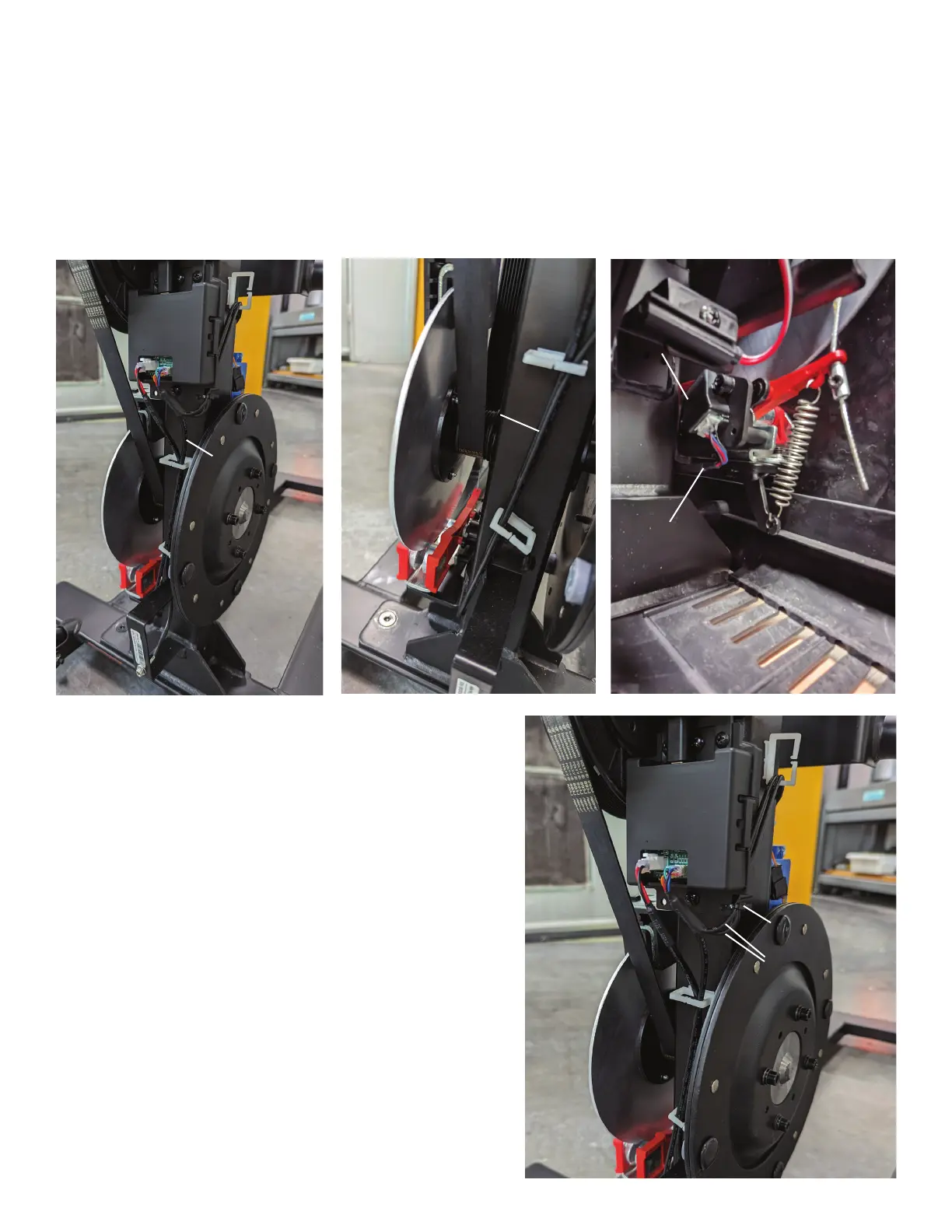

21. Disconnect the Split Cable - Resistance PCB Arm
from the Resistance PCB.
22. Remove the old Split Cable - Resistance PCB
Arm from the two securing clips on the Frame,
and route the new Split Cable - Resistance PCB
Arm to the Resistance PCB. Connect it to the
Resistance PCB.
NOTICE: Do not cut or pinch the cable.
Split Cable
- Resistance
PCB Arm
Split Cable
- Resistance
PCB Arm
Split Cable
- Resistance
PCB Arm
Resistance
PCB
23. Cut the Zip-Tie that secures the old Split Cable -
Servo and Speed Arms after noting how it secures
the cables. This will assist with re-assembly.
NOTICE: Do not cut or pinch the cables.
Split Cable
- Resistance
PCB Arm
Zip-Tie
Split Cable
- Servo and
Speed Arms
To Next Page
