44

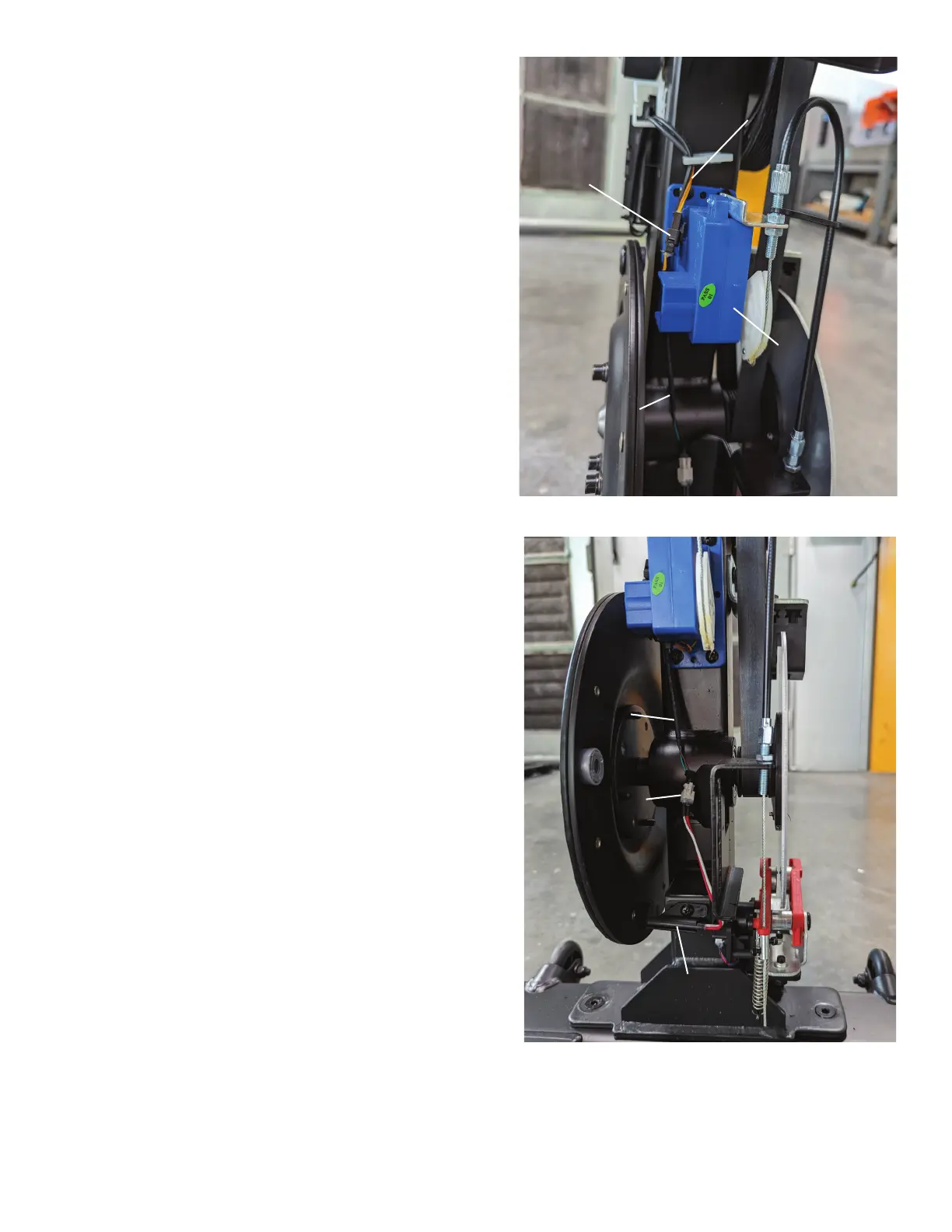

24. Disconnect the Cable Connector between the
Split Cable- Servo Arm and the Servo Motor.
NOTICE: Do not cut or pinch the cables.
25. Route the new Split Cable - Servo Arm to the
Cable Connector to the Servo Motor, and
connect them.
NOTICE: Do not cut or pinch the cable.
Split Cable -
Speed Arm
Cable
Connector
Speed Sensor
Cable
Connector
Servo Motor
Split Cable -
Servo Arm
Split Cable -
Speed Arm
26. Disconnect the Cable Connector between the
Split Cable- Speed Arm and the Speed Sensor.
NOTICE: Do not cut or pinch the cables.
27. Route the new Split Cable - Servo Arm to the
Cable Connector to the Servo Motor, and
connect them.
NOTICE: Do not cut or pinch the cable.
28. Fully remove the old Split Cable Assembly from
the machine.
NOTICE: Do not cut or pinch the cable.
29. Replace the cut Zip-Tie and secure the new Split
Cable - Servo and Speed Arms the Frame.
NOTICE: Do not cut or pinch the cables.
