Bowflex Max Trainer SE - Page 45

45
Right
Structural
Shroud
Left
Structural
Shroud
Console
Cable
Grommet

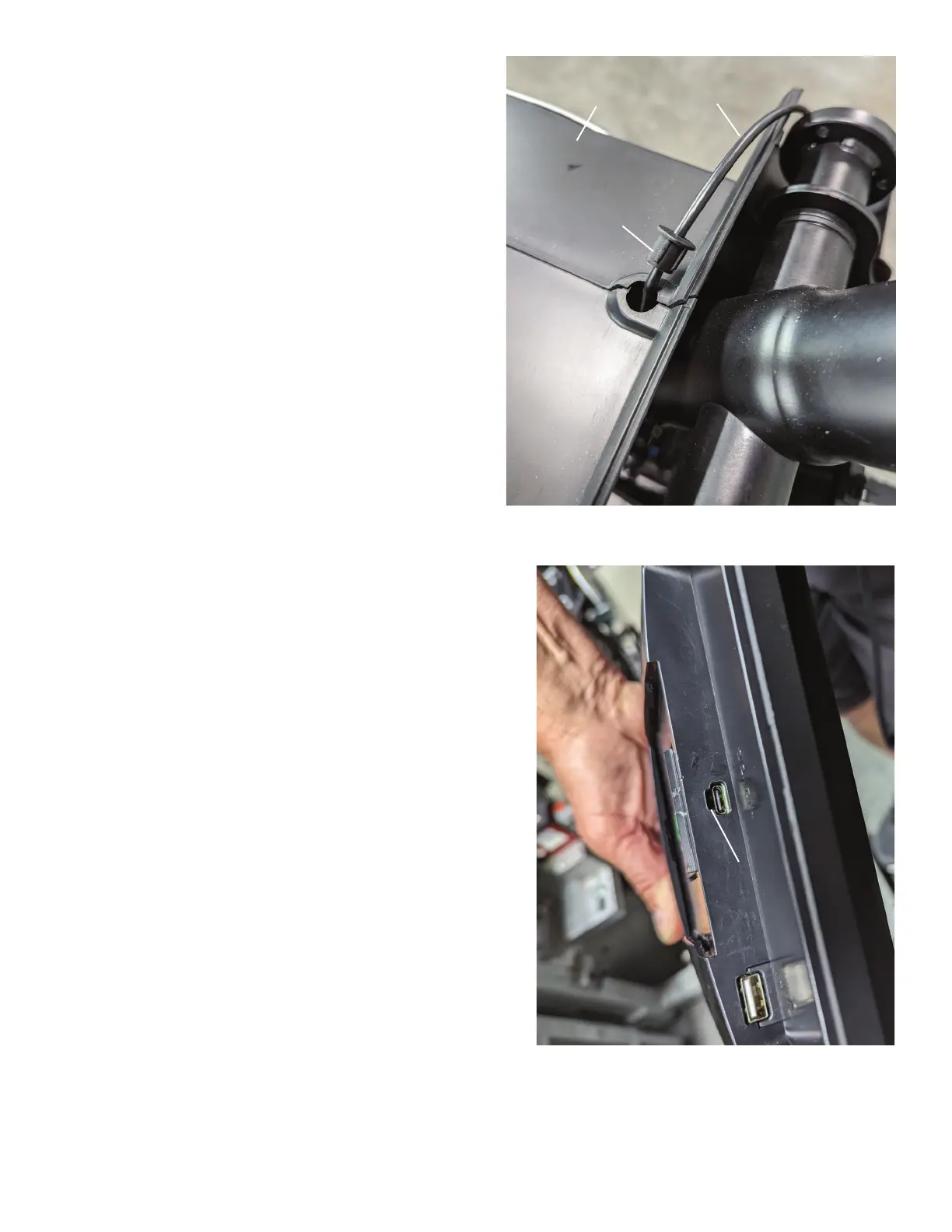

30. Re-install all remaining parts that were removed in
reverse order.
When replacing the Structural Shrouds, be sure
that the Main Mast Cable is routed through the
opening between the Structural Shrouds, and that
the Grommet is outside of the Shrouds. Once they
have been attached, slide the Grommet down into the
opening between the Structural Shrouds.
Note: Do not cut or pinch the Console Cable.
When re-connecting the Cable to the Console,
the Cable Connector has a tab that can only be
connected to the Console in one orientation. Connect
the Console Cable to the Console in the proper
orientation.
NOTICE: Do not cut or pinch the cable.
Cable Connector
Tab
