6. Slide the new Console onto the Handlebar
Assembly until the Securing Tab is engaged.
NOTICE: Do not cut or pinch the cable.

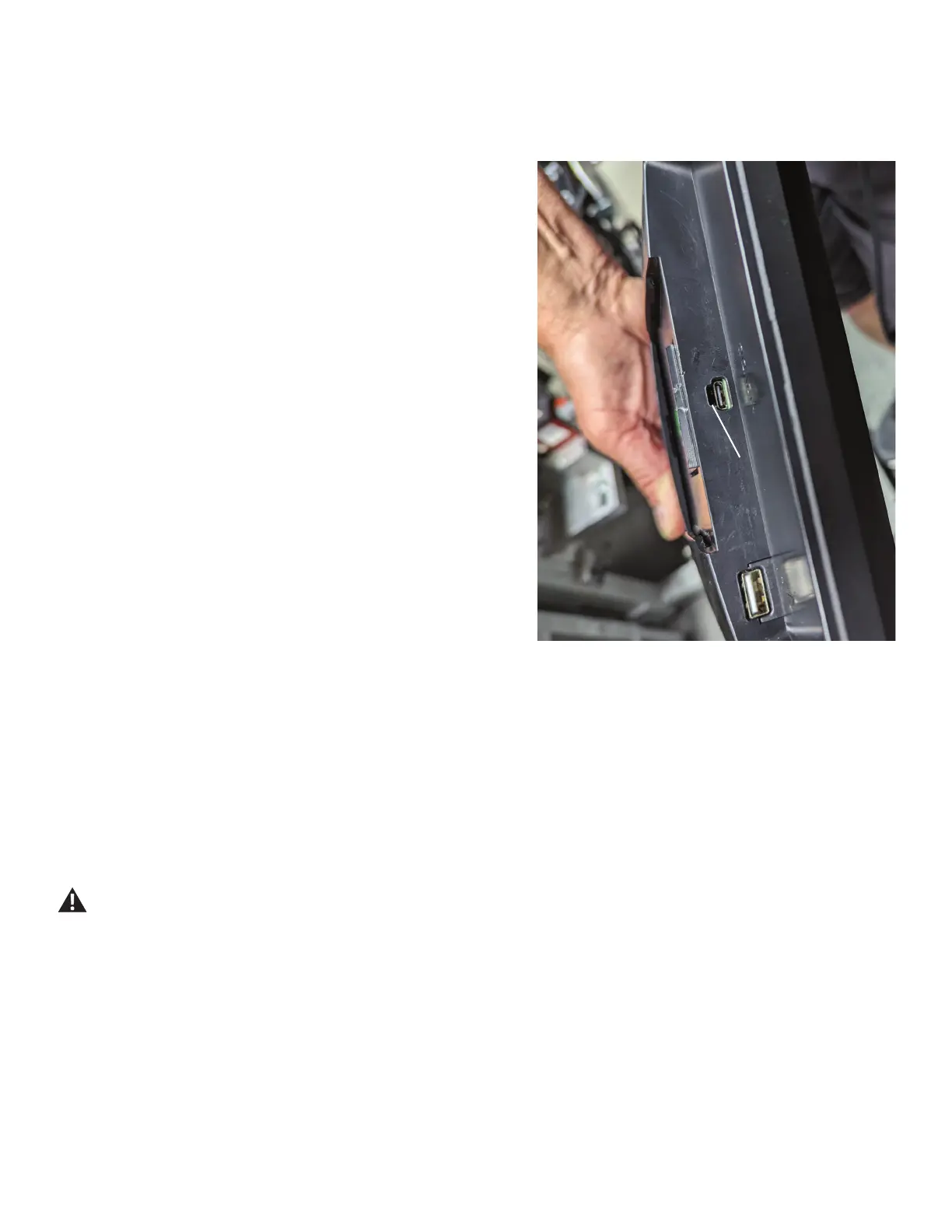

7. The Cable Connector has a tab that can only be
connected to the Console in one orientation.
Connect the Console Cable to the new Console in
the proper orientation.
NOTICE: Do not cut or pinch the cable.
8. Re-install all remaining parts that were removed in
reverse order.
9. Final Inspection
Inspect your machine to ensure that all hardware is
tight and components are properly assembled.
Do not use until the machine has been fully
assembled and inspected for correct perfor-
mance in accordance with the Owner’s Manu-
al.
Cable Connector
Tab
