63

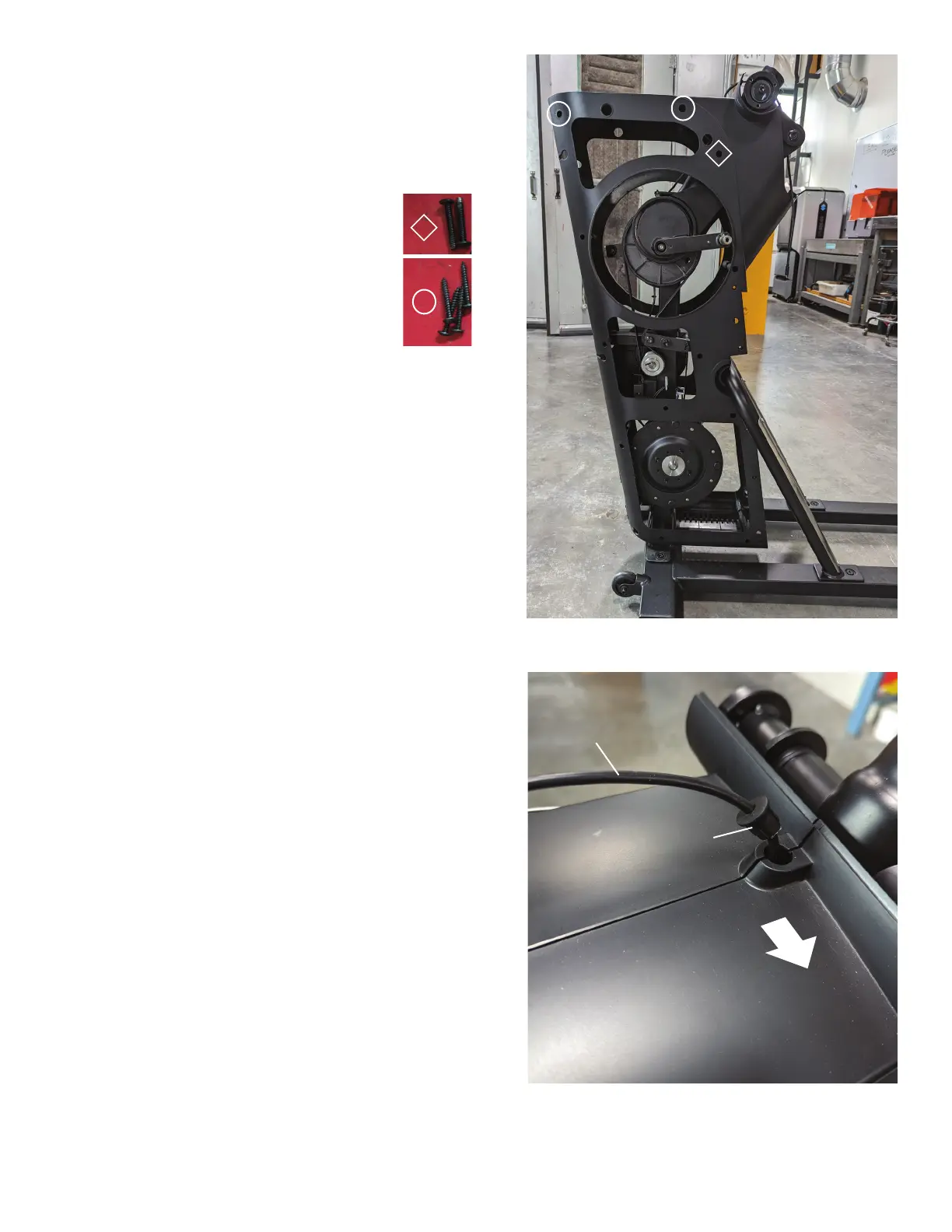

11. Using a #2 Phillips screwdriver, remove the
indicated hardware from the Structural Shrouds.
Note: To assist with re-assembly, the key to the type of
screw and where it is used is provided.
12. Flex the Left Structural Shroud outward just
enough to release the old Main Mast Cable from
the opening, and place the new Main Mast Cable
into the opening.
Note: Be sure that the Grommet on the Main Mast
Cable is outside of the Structural Shrouds.
NOTICE: Do not cut or pinch the cable.
Left
Structural
Shroud
Main Mast
(Console)
Cable
Grommet
To Next Page
