64
Main Mast
Cable
Zip-Tie
Zip-Tie
Zip-Tie
Main Mast
Cable
Main Mast
Cable
Main Mast
Cable
Printed Circuit
Board Assembly
(PCBA)
Printed Circuit
Board Assembly
(PCBA)

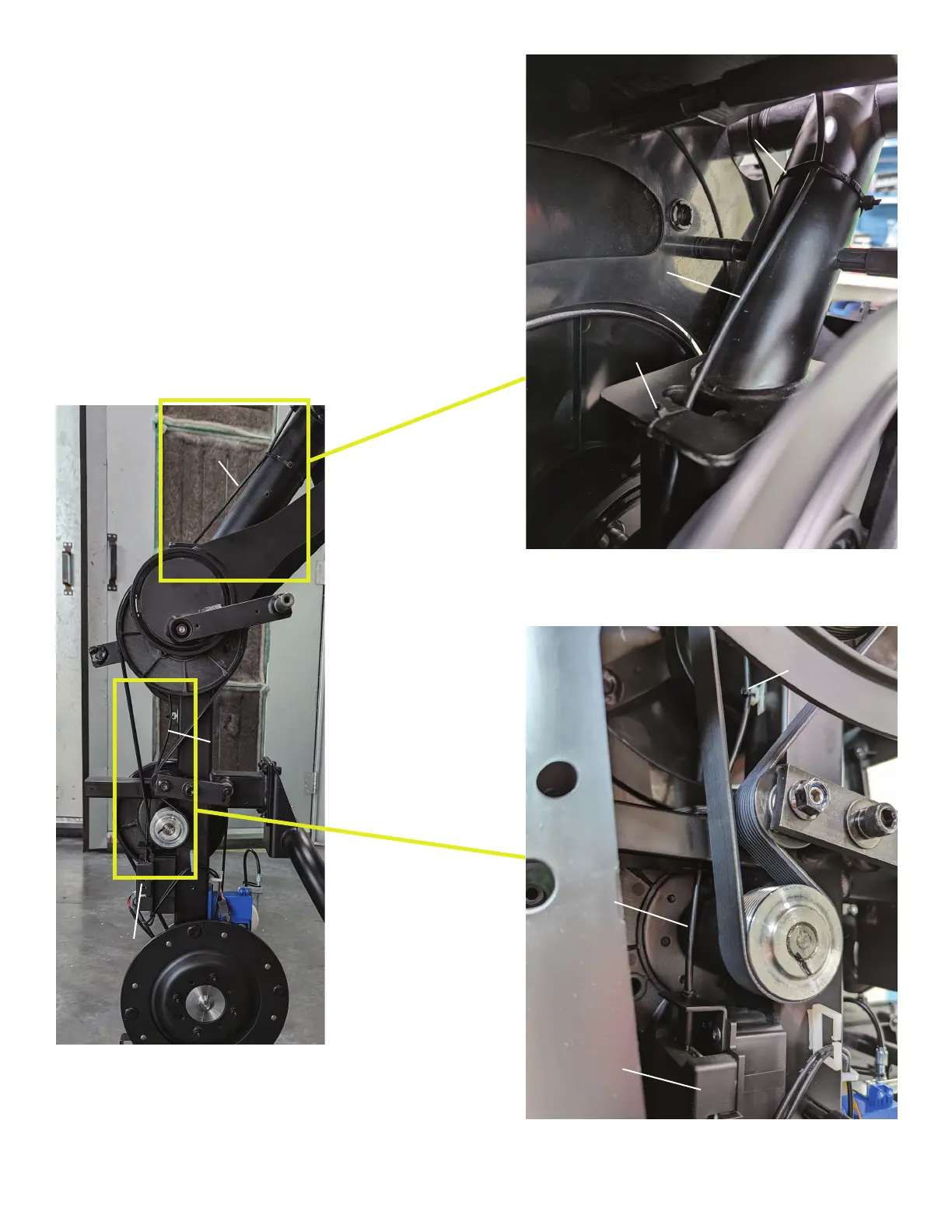

13. The Main Cable routes downward along the
Frame, secured by three Zip-Ties, where it
connects to the Printed Circuit Board Assembly
(PCBA).
Route the new Main Cable along the old Cable
through the Frame, being sure not to cut or pinch
the Cable.
14. Disconnect the old Main Cable from the PCBA,
and connect the new Main Cable to the PCBA.
15. Cut each Zip-Tie that secures the old Main Cable
and replace it with a new Zip-Tie, securing the new
Main Cable to the Frame. Continue until the old
Main Cable is fully disconnected from the Frame,
and remove it from the machine.
Note: The Structural Shrouds have
been removed for clarity.
