79

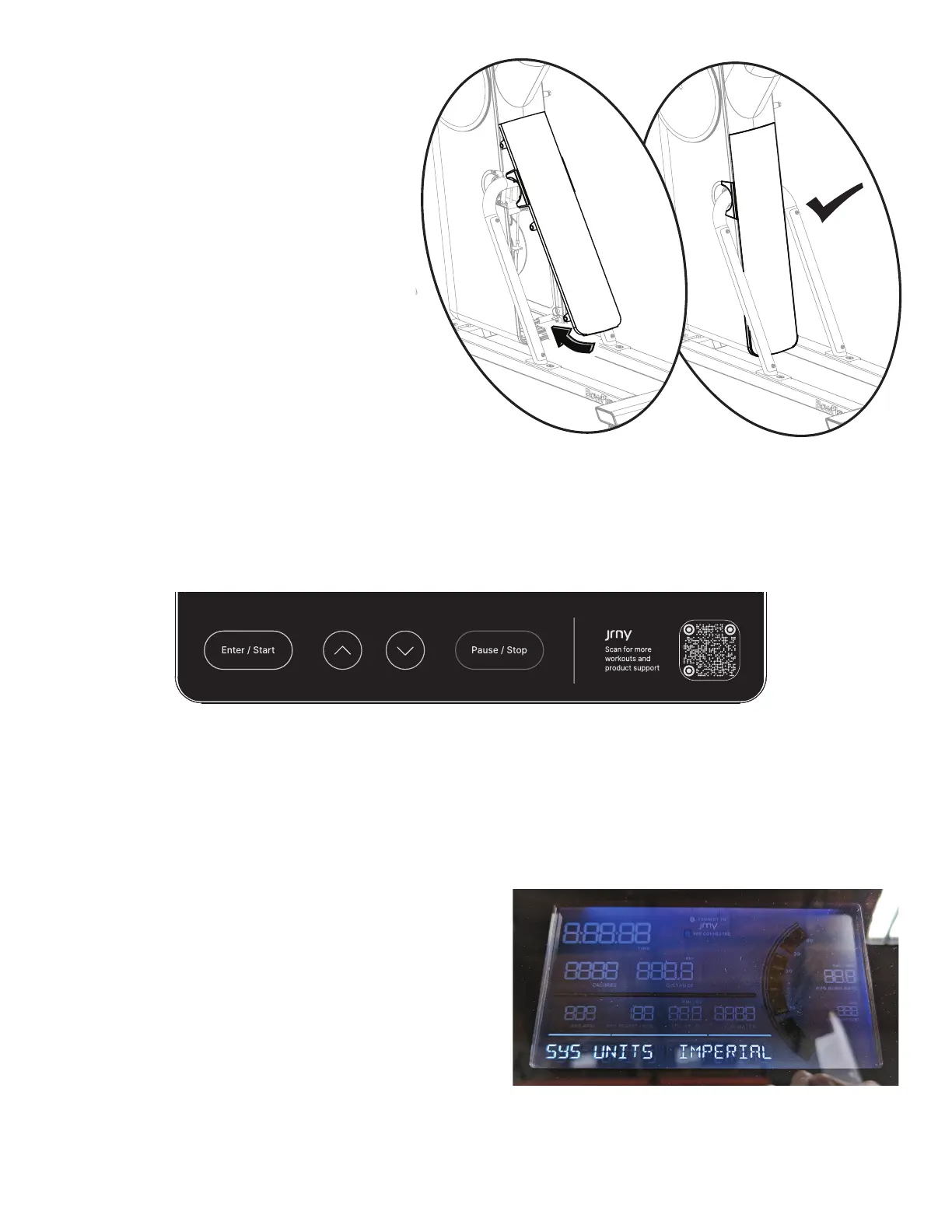

When re-installing the Rear Shroud to the
Frame Assembly, place the upper part of the
Rear Shroud onto the Frame Assembly. Then
pivot it downward into place. There are 6
tabs that will secure it.
Calibrating the Resistance:
Note: During the calibration process no one should be pedaling the machine. Standing on the pedals is okay dur-
ing the calibration process.
24. Push the Enter/Start button and hold for 3
seconds while in the Power-Up Mode to go into
the Console Setup Mode (System Menu).
Note: To exit the System Menu and return to the Pow-
er-Up Mode screen, push the Pause/Stop button.
25. The Console display shows the System Units
prompt with the current setting. Tap the Enter/
Start button 6 times to advance through the
System Menu.
To Next Page
