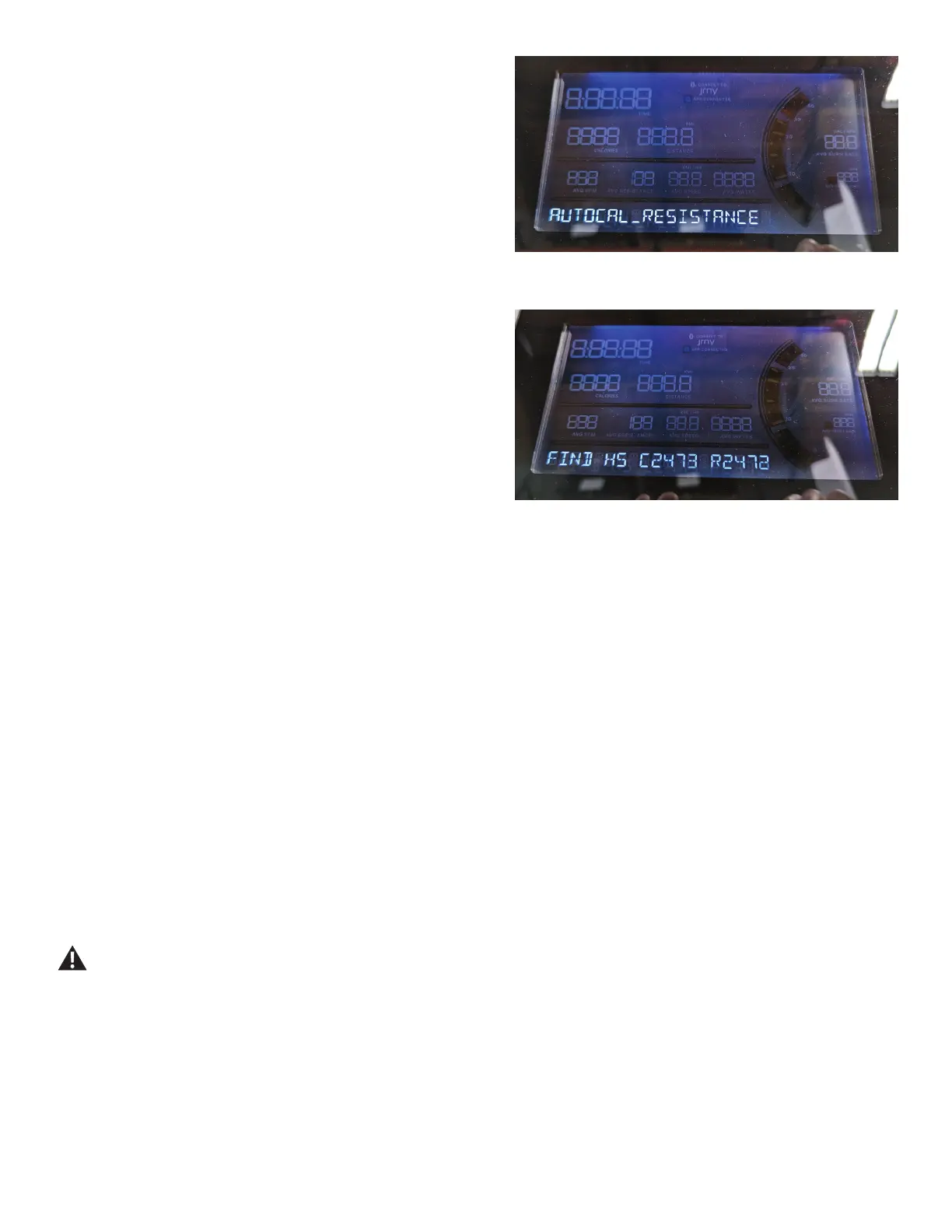

12. The Console display shows the AUTOCAL_
RESISTANCE (Automated Calibrate Resistance)
option. Push the Enter/Start button.
Note: If the Pause/Stop button is pushed part way
through the calibration (exit), the new calibration is
not saved.
13. The console will display changing text and
numbers for approximately 30 seconds as the
servo motor moves.
14. The console display will change to “CNFRM
C4095 AGC xx”.
15. Push the Enter/Start button to confirm and save
the resistance calibration values. The display
will momentarily change to “SAVING CAL”, then
display “AUTO CAL_RESISTANCE”. Calibration is
complete.
Note: Pushing the Pause/Stop button will abort the
calibration process, with the new calibration values
not being saved, and the last saved calibration values
being restored.
16. Power o the machine.
17. Final Inspection
Inspect your machine to ensure that all hardware is
tight and components are properly assembled.
Do not use until the machine has been fully
assembled and inspected for correct perfor-
mance in accordance with the Owner’s Manu-
al.
