Note: All Shrouds have been removed for clarity.

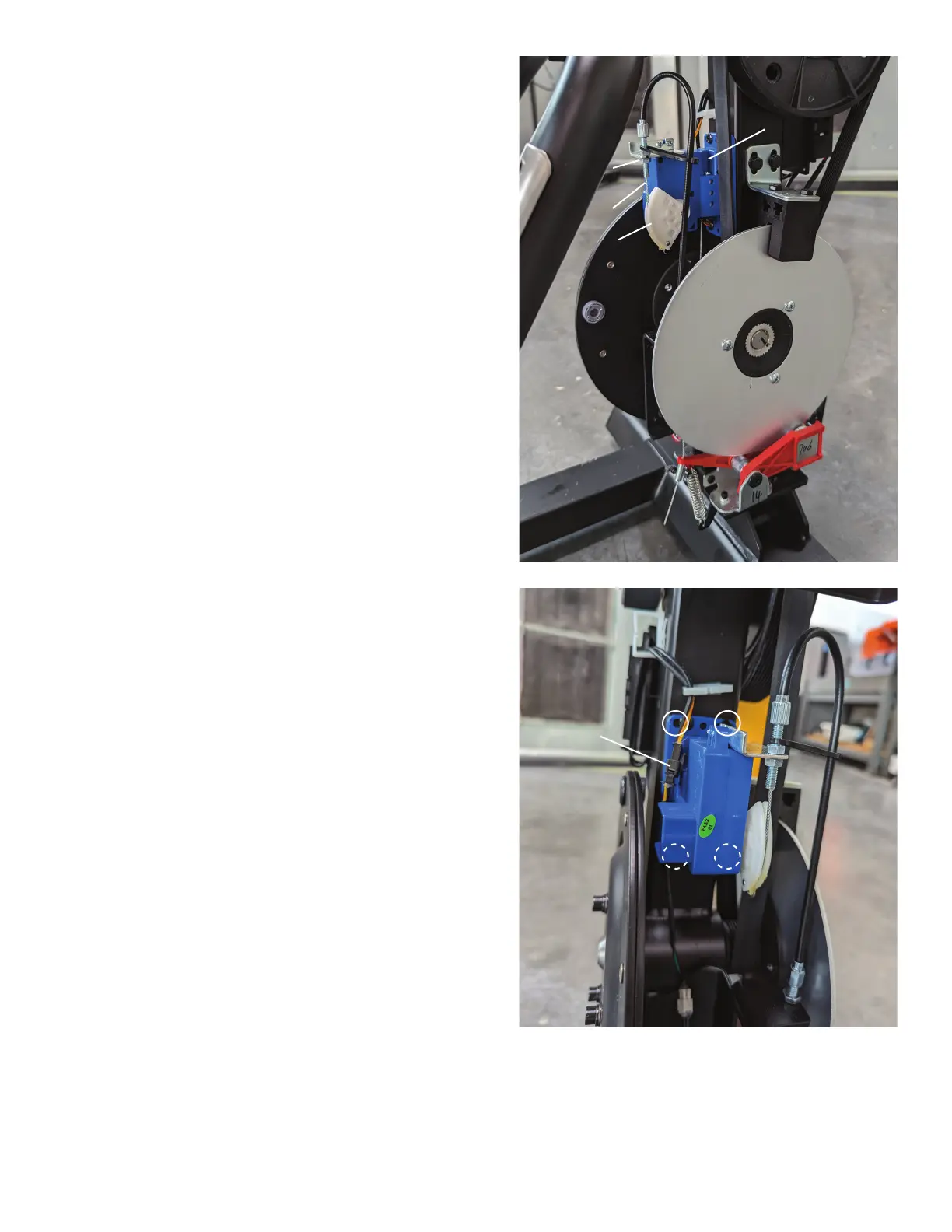

3. Using an 8mm open ended wrench, loosen the
Brake Cable Securing Nut until the Brake Cable can
be released from the Servo Motor Arm.
4. Disconnect the Cable Connectors from the Servo
Motor.
5. Using a #2 Phillips screwdriver, remove the 4
screws (indicated by ovals) that attach the Servo
Motor to the Frame.
6. Attach the new Servo Motor to the Frame and
connect the Cables.
Servo
Motor
Brake Cable
Securing Nut
Brake Cable
Servo Motor
Arm
Cable Connector
To Next Page
