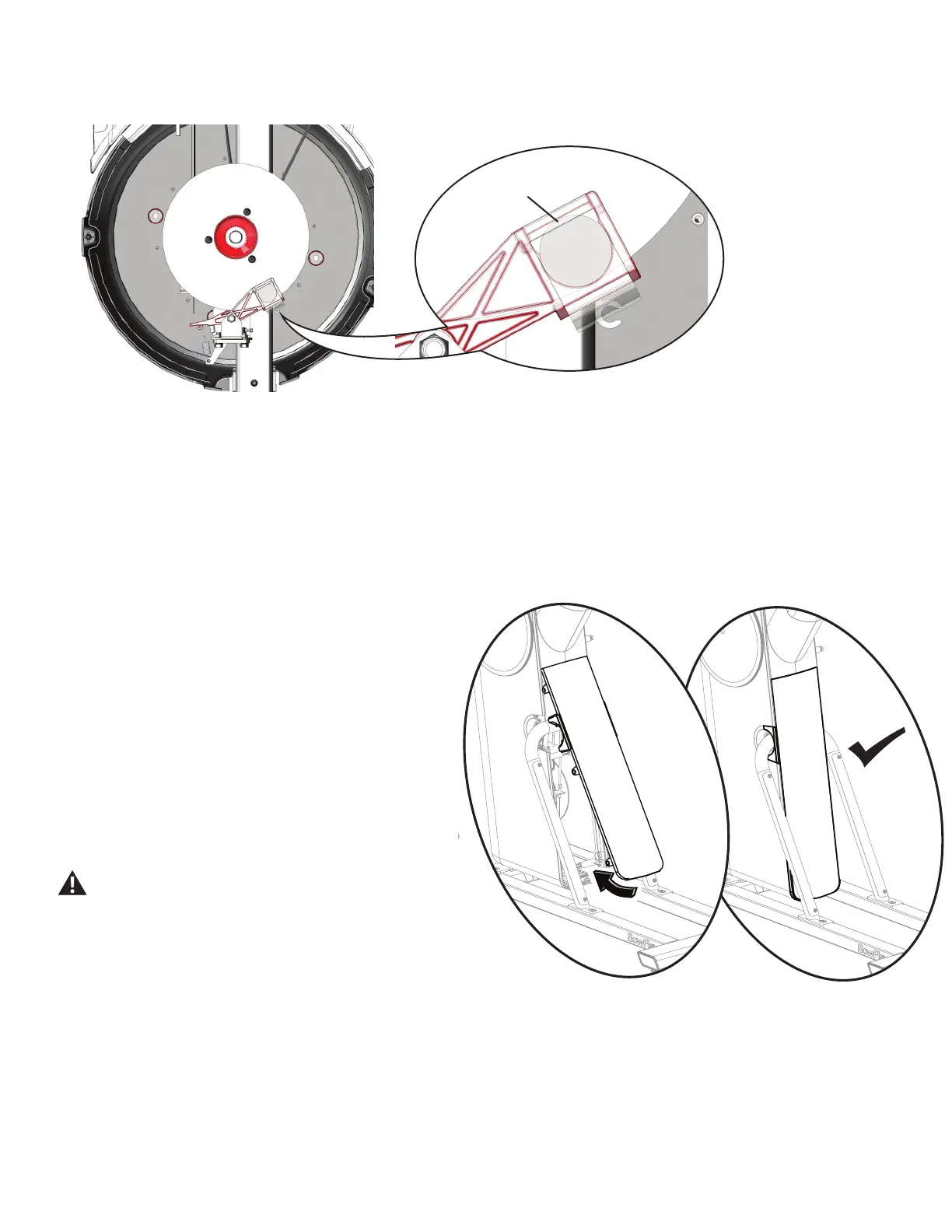

7. At the maximum resistance setting, the outer edge
of the Brake Magnet should line up with the outer
edge of the Brake Disc.
8. If the Brake Assembly needs to be adjusted, use a
8mm open ended wrench to loosen the Brake Cable
Securing Nut. Turn the Adjustment Barrel by hand
until the magnet is placed correctly.
Brake Magnet
Brake Disc
9. Re-install Rear Shroud to the Frame Assembly.
Place the upper part of the Rear Shroud onto the
Frame Assembly, and then pivot it downward into
place. There are 6 tabs that will secure it.
10. Final Inspection
Inspect your machine to ensure that all hardware is
tight and components are properly assembled.
Do not use until the machine has been fully
assembled and inspected for correct perfor-
mance in accordance with the Owner’s Manu-
al.
