Bowflex Max Trainer SE - Page 96

96

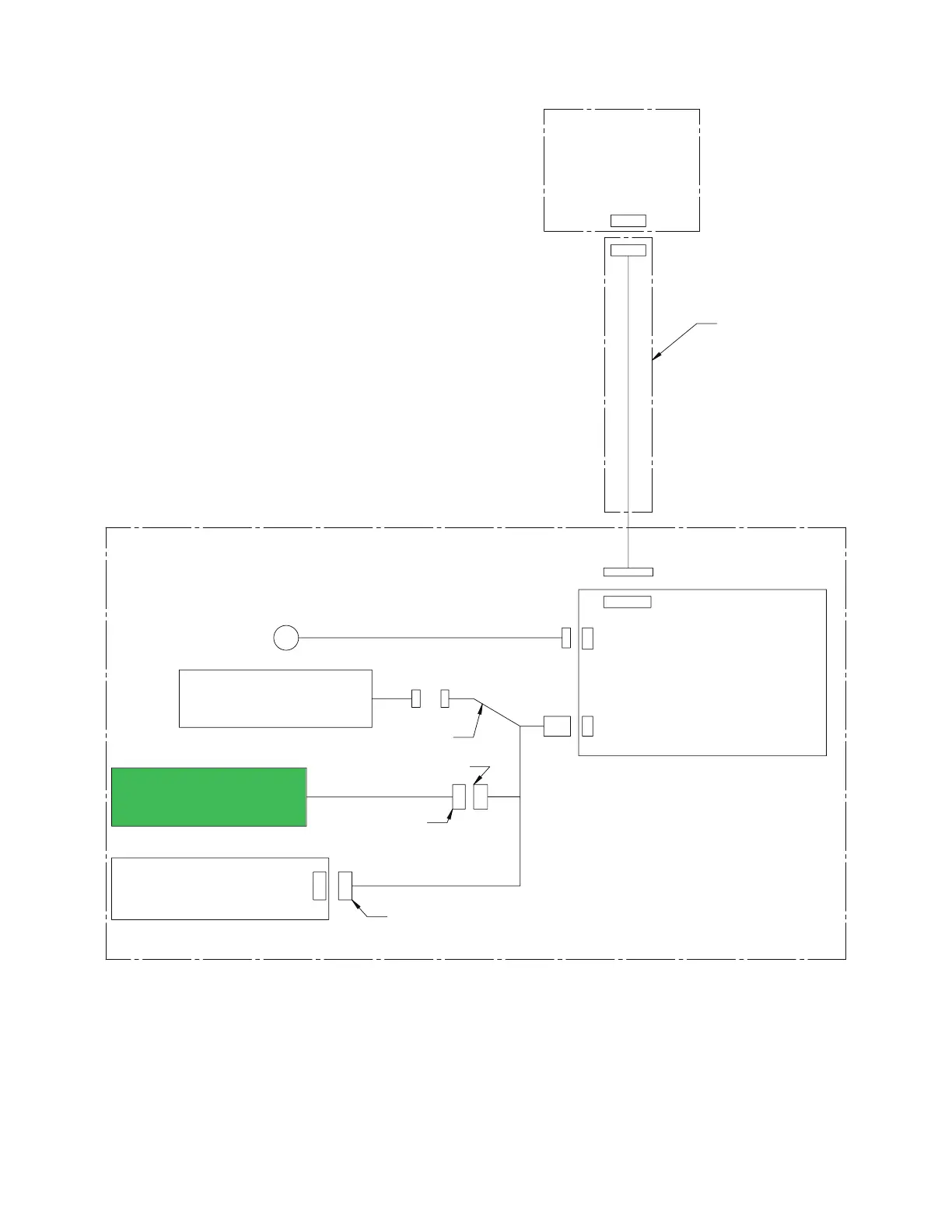

ELECTRICAL WIRING ROUTE DETAIL
- Speed Sensor
USB-C RECPT
2 WIRE
2 WIRE
C2501-H05
(SM-5A)
USB-C PLUG
PHD-2X4A
VH-2A
PHD-2X4Y
VH-2Y
USB-C RECPT
XH-4Y
HA-2A
CONSOLE ASSEMBLY
USB-C PLUG
HA-2Y
XH-4AW
4 WIRE PCBA, MAG
ROTATIONAL POSITION
SENSOR 3V3
SUB ASSY, ENGINE
SPEED SENSOR
2 WIRE
12VDC 3 A 2.0MM PIN
SUB ASSY, SERVO
PCBA, BASE HUB
SUB ASSY, HANDLEBARS
