Bowflex Power Pro - Installing the Leg Extension Attachment

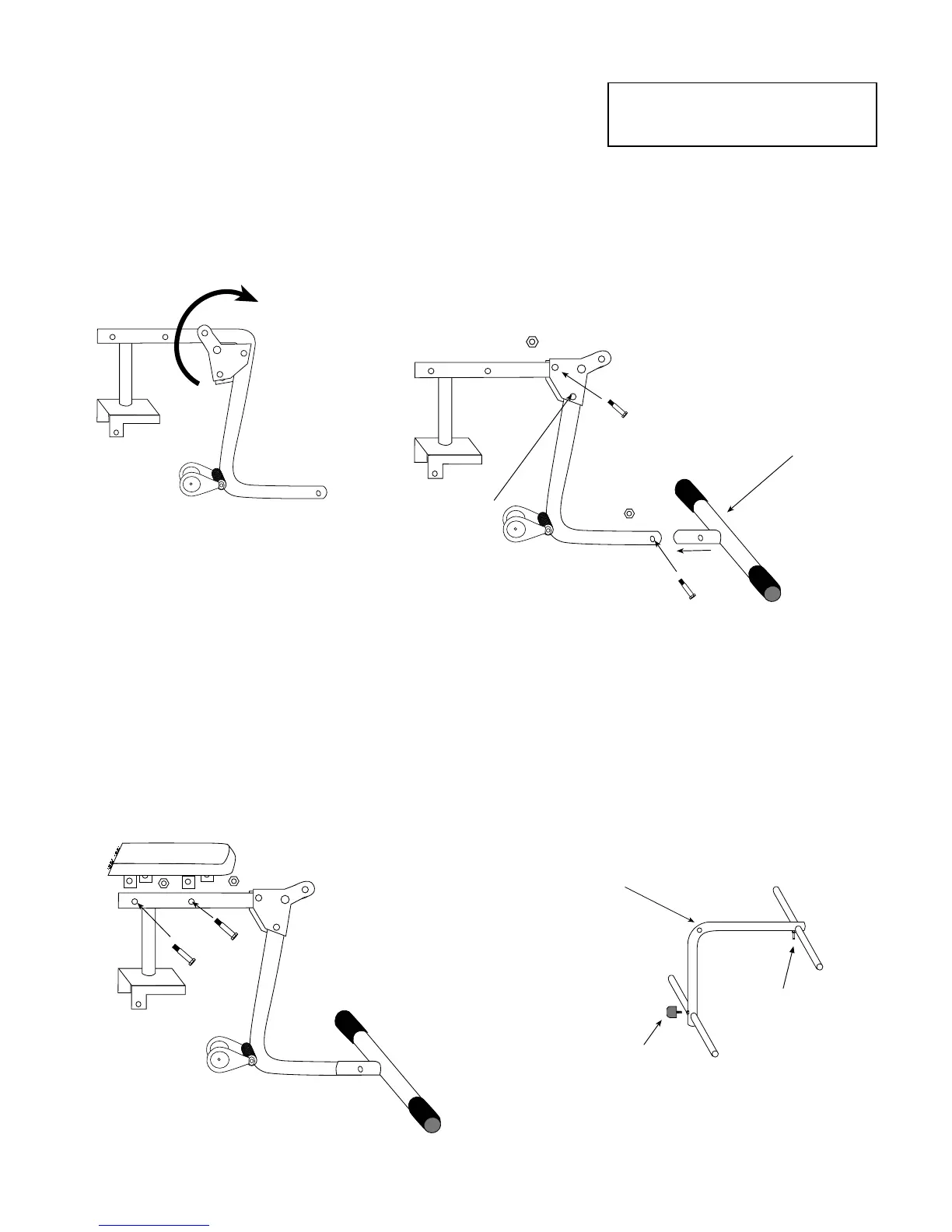

Step 1:
Rotate Pivot Arm Bracket
as indicated.
Step 2:
Secure Pivot Arm Bracket by inserting one 5/16" x 2" Hex Head
Bolt through indicated hole on Bracket and tighten with one
5/16" Lock Nut. Check pre-placed bolt, tighten if necessary.
Insert Leg Extension Foot into Leg Extension Main Frame as
indicated. Insert one 5/16" x 2" Hex Head Bolt through hole
and tighten with one 5/16" Lock Nut.
Step 3:
Locate Seat. Align “L” brackets
on bottom of Seat with holes located on Leg
Extension Main Frame as indicated. Use two
5/16" x 2" Hex Head Bolts to secure Seat to
Main Frame. Insert and tighten with two
5/16" Lock Nuts.
Step 4:
Locate Pivot Arm. Insert metal tubes through large
holes at each end of Pivot Arm. IMPORTANT! Tighten
pre-placed 1/4" x 3/4" Machine Screw into nut
underneath top of Pivot Arm. BUT DO NOT
OVERTIGHTEN!
5/16" x 2"
Hex Head Bolt
Installing the Leg Extension Attachment
Top
Bottom
Rubber Bumper
w/ Bolt.
Tighten pre-placed
1/4" x 3/4" Machine
Screw.
Pivot Arm
12
Leg Extension Foot
Pre-placed Bolt
5/16" x 2"
Hex Head Bolt
Components for this assembly
are in a box labeled
Leg Extension Attachment
