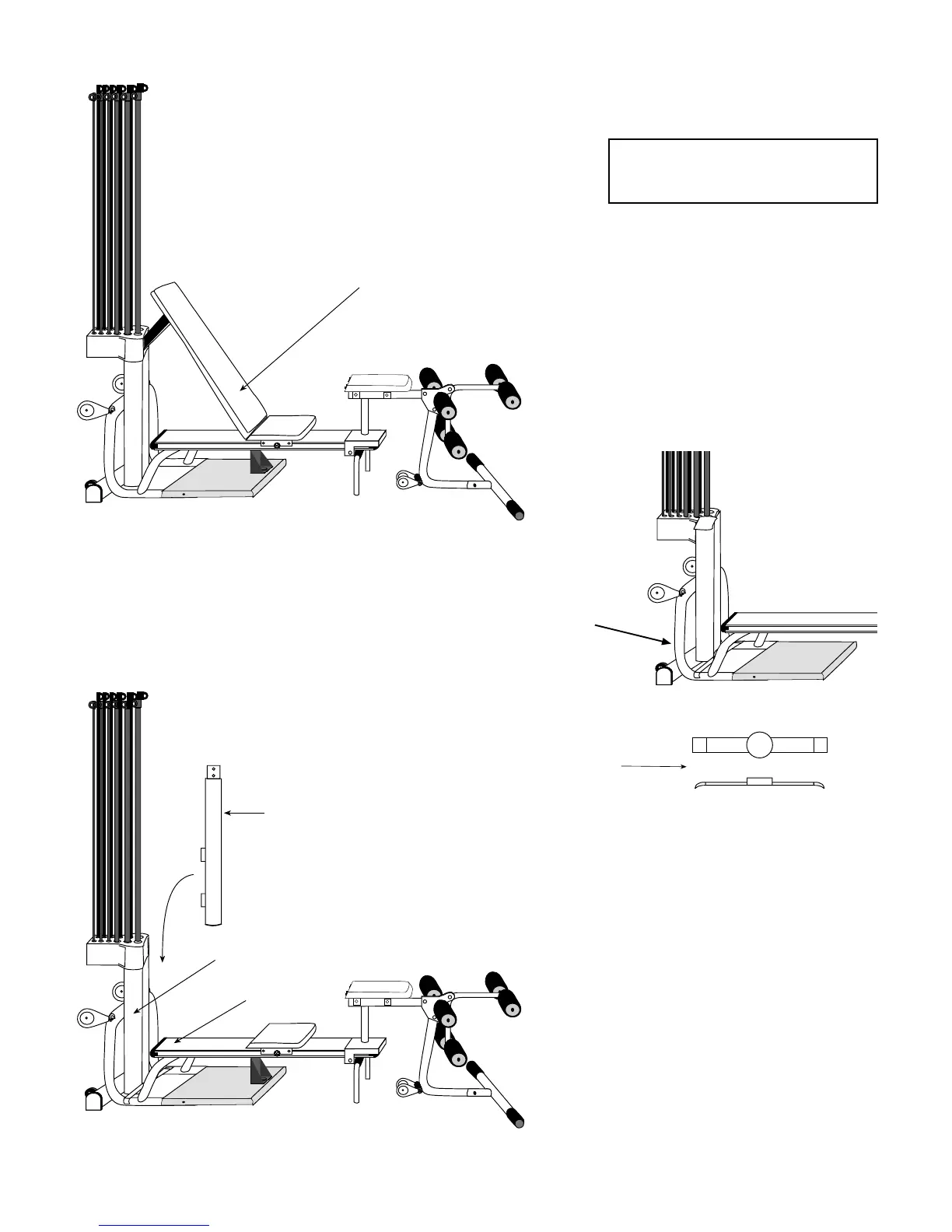

Installing The Lat Pulldown Attachment
Step 1:
Remove the long portion of the Bench.
Step 3:
Place the Main Frame Lower Half in between
the Vertical Extrusion and the Seat Rail. Make
sure the two black plastic bumpers are facing
the Vertical Extrusion and the bottom of the Main
Frame Lower Half rests in the circular portion of
the cross bar.
Step 2:
Place the cross bar so the curved ends are
facing downward and they rest on the bottom
of the pulley frame.
Cross Bar
19
Top View
Side View
Vertical Extrusion
Seat Rail
Main Frame (Lower Half)
Components for this assembly
are in a box labeled
Lat Pulldown Attachment
To Next Page
