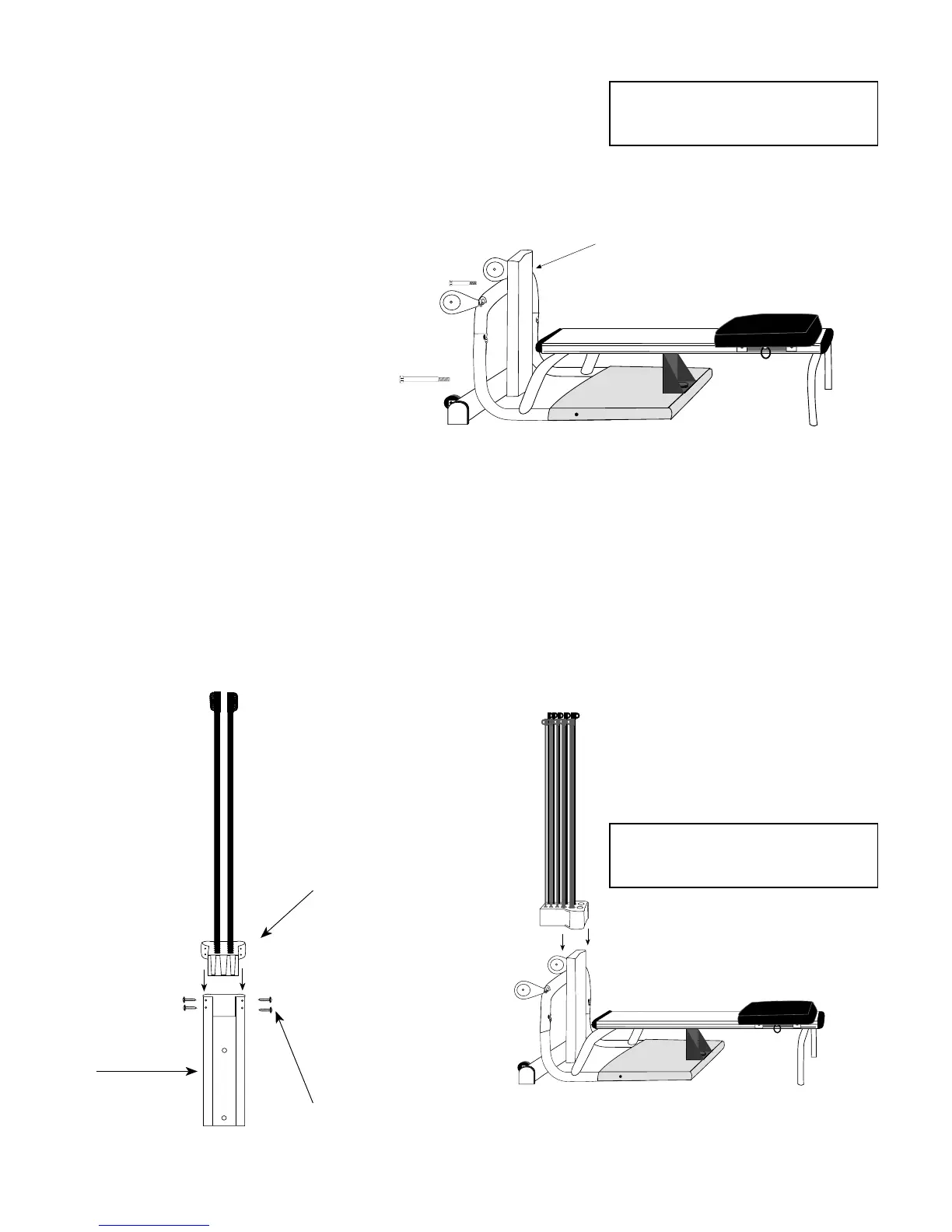

Step 5:
Locate the Power Rod Pack. Slide Power Rod Pack onto top of Vertical Main Frame.
For easy installment, use a rubber mallet to tap rod box securely into Vertical Main
Frame. Be sure that holes on each side line up. Secure the two parts together by
tightening four of the #12 Screws through the four holes (two on each side) of the
Power Rod Pack.
Note:
If the screws do not go in easily, use soap or other lubricant in screw threads.
Power Rod Pack
Vertical
Main Frame
5a.
Step 4:
Locate the Vertical Mainframe.
Attach U-Bar portion of Pulley Frame to the
Vertical Main Frame with the 3/8" x 2 1/2"
Hex Head Bolt.
Use the 3/8" x 4" Hex Head Bolt to secure
the lower portion of the Pulley Frame.
Tighten securely.
Tighten U-Bar securely.
Note:
It is best to
tighten both top &
bottom bolts at the
same time evenly.
Do not overtighten.
#12 Screw
8
Components for this
assembly are in Box 1
3/8" x 2 1/2"
Hex Head Screw
3/8" x 4"
Hex Head Screw
Vertical Main Frame
Components for this
assembly are in Box 2
To Next Page
