Bowflex Treadmill 10 - Parts Identification; Component List

Assembly / Owner’s Manual
9

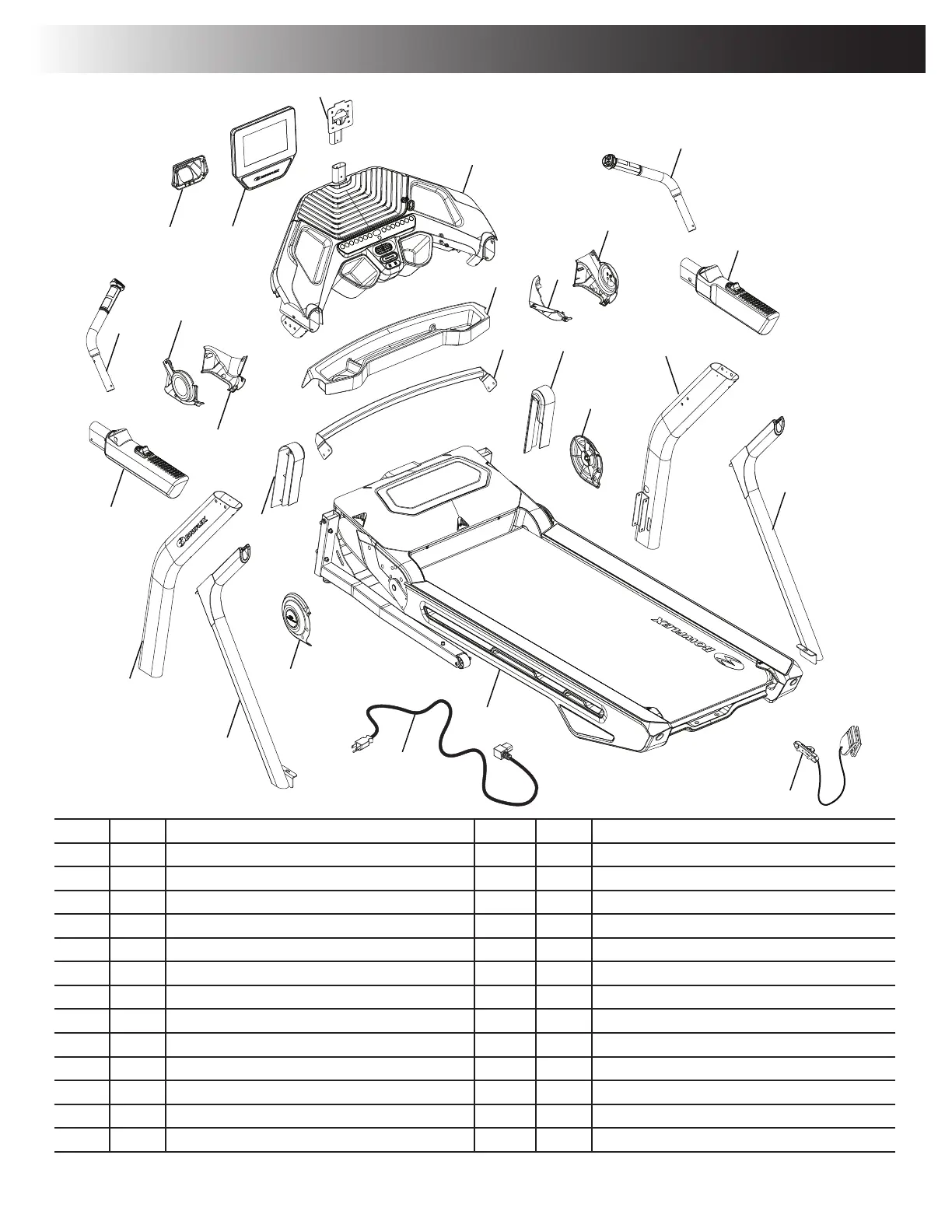

Parts
17
15
2
1
3
4
5
6
8
9
10
11
14
12
7
16
19
20
21
25
24
23
22
13
18
Item Qty Description Item Qty Description
1 1 Console Rear Cover 14 1 Upright Support, Right
2 1 Console Assembly 15 1 Safety Key
3 1 Console Mast 16 1 Base Assembly
4 1 Console Base Assembly 17 1 Power Cord
5 1 Tray 18 1 Pivot Cover, Left
6 1 Crossbar 19 1 Upright Support, Left
7 1 Base Shroud, Right 20 1 Upright, Left
8 1 Inner Junction Cover, Right 21 1 Handlebar Assembly, Left
9 1 Outer Junction Cover, Right 22 1 Base Shroud, Left
10 1 Upper Handlebar Assembly, Right 23 1 Inner Junction Cover, Left
11 1 Handlebar Assembly, Right 24 1 Outer Junction Cover, Left
12 1 Upright, Right 25 1 Upper Handlebar Assembly, Left
13 1 Pivot Cover, Right 26 1 Document Kit / Hardware Card (not shown)
