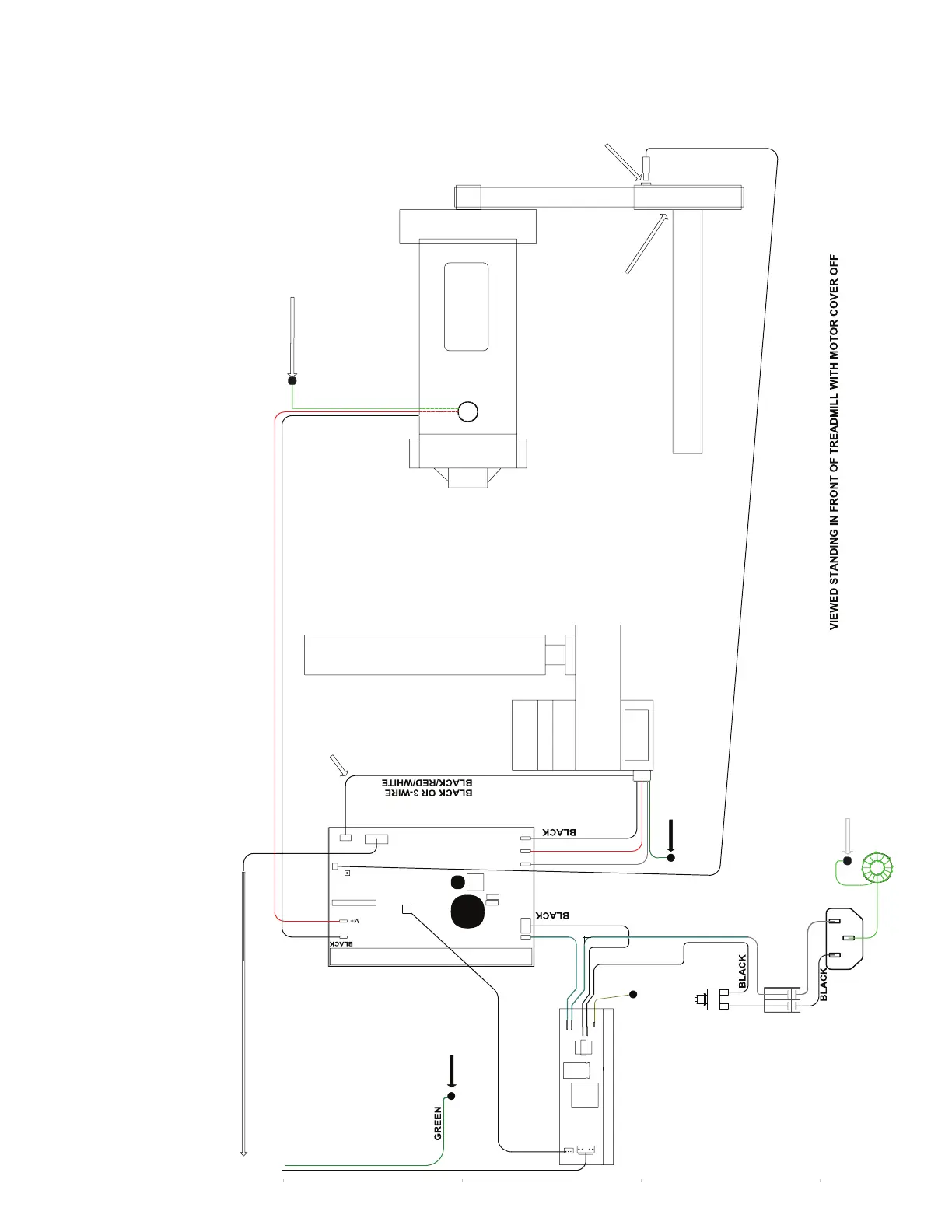

ELECTRICAL WIRING ROUTE DETAIL
- Motor Compartment
WHITE
WHITE
M-
HEAT SINK
RED
ACL
ACN
COM
UP
DOWN
WHITE
L
G
N
FERRITE CHOKE
EARTH GROUND/FRAME
4
2
3
1
EARTH GROUND / FRAME
TACHOMETER MAGNET AND REED SWITCH SENSOR
WHITE
RED
Incline Sensing
TO CONSOLE
WALK BELT FRONT PULLEY AND SHAFT
EARTH GROUND FRAME
EARTH GROUND/FRAME
GROUND TO FRAME
TO CONSOLE
