1. Unplug the power cord from the machine and wait 5 minutes. Place the
power cord in a secure location.
!
To reduce the risk of electrical shock or unsu-
pervised usage of the equipment, always unplug
the power cord from the wall outlet and wait 5
minutes before cleaning, maintaining or repair-
ing this machine. Place the power cord in a
secure location.

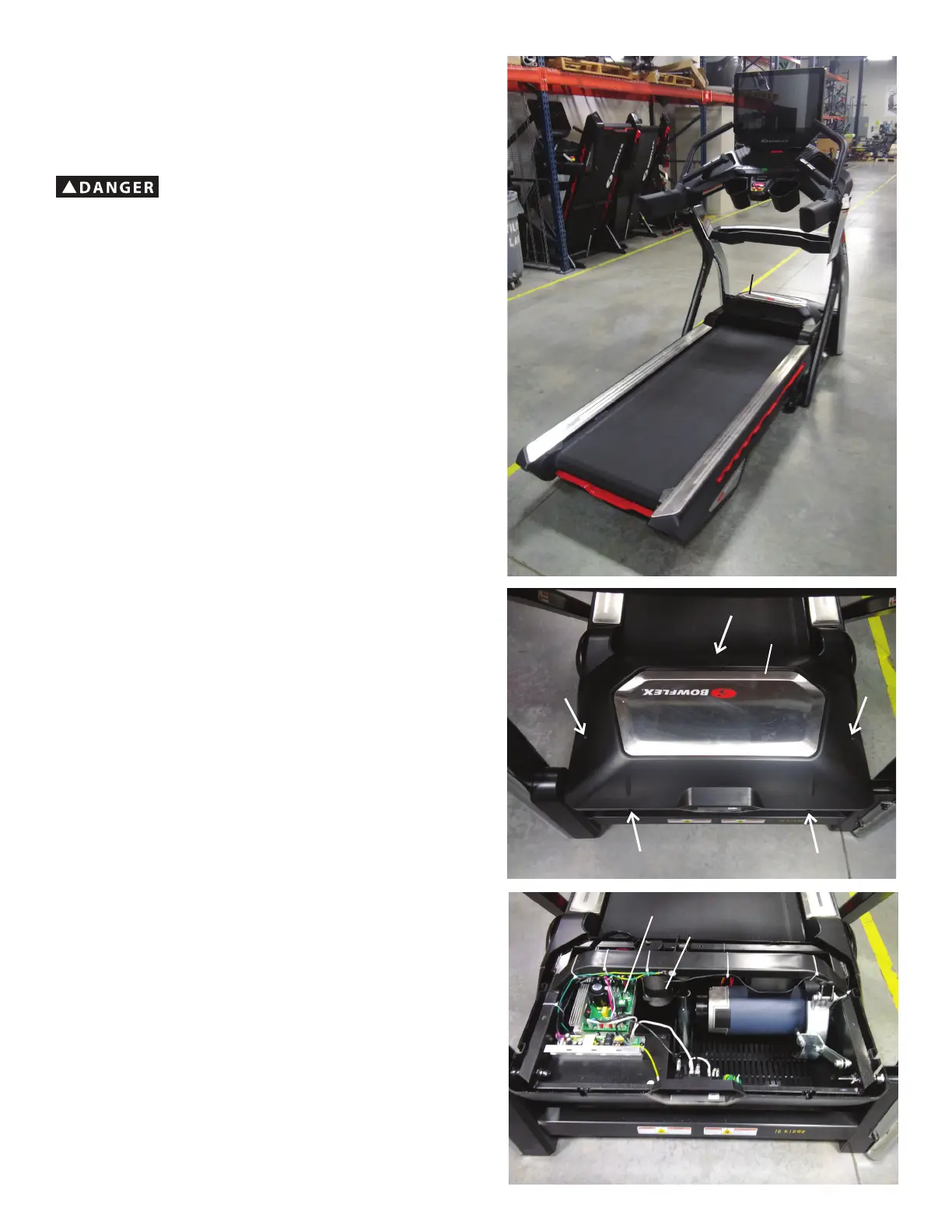

2. Using a #2 Phillips screwdriver, remove the 5 screws (indicated by ar-
rows) that secure the Motor Cover and remove it.
of the machine (see image to the right).
3. Gently release the front snaps (indicated by ovals) that secure the
Motor Cover and pivot it back toward the walking belt until it releases.
Remove from the machine.
Note: Your machine may not match the images provided exactly.
Motor Cover
Motor Cover
Motor Control Board (MCB)
Incline Motor Assembly
To Next Page
