5. Gently remove the old Lower Input/Output (I/O) Cable from the Motor Con-
trol Board (MCB).
Note: Do not crimp the Cables.
6. Remove the old Lower I/O Cable from the Frame Assembly. Route the new
Lower I/O Cable into the Frame Assembly following route of the old Cable.
Note: Do not crimp the Cables.
7. Connect the new Lower I/O Cable to the Motor Control Board in the proper
location.
Note: Do not crimp the Cable.
8. Connect the new Lower and Upper Input/Output (I/O) Cables, and push the
Connection close to the Right Upright.

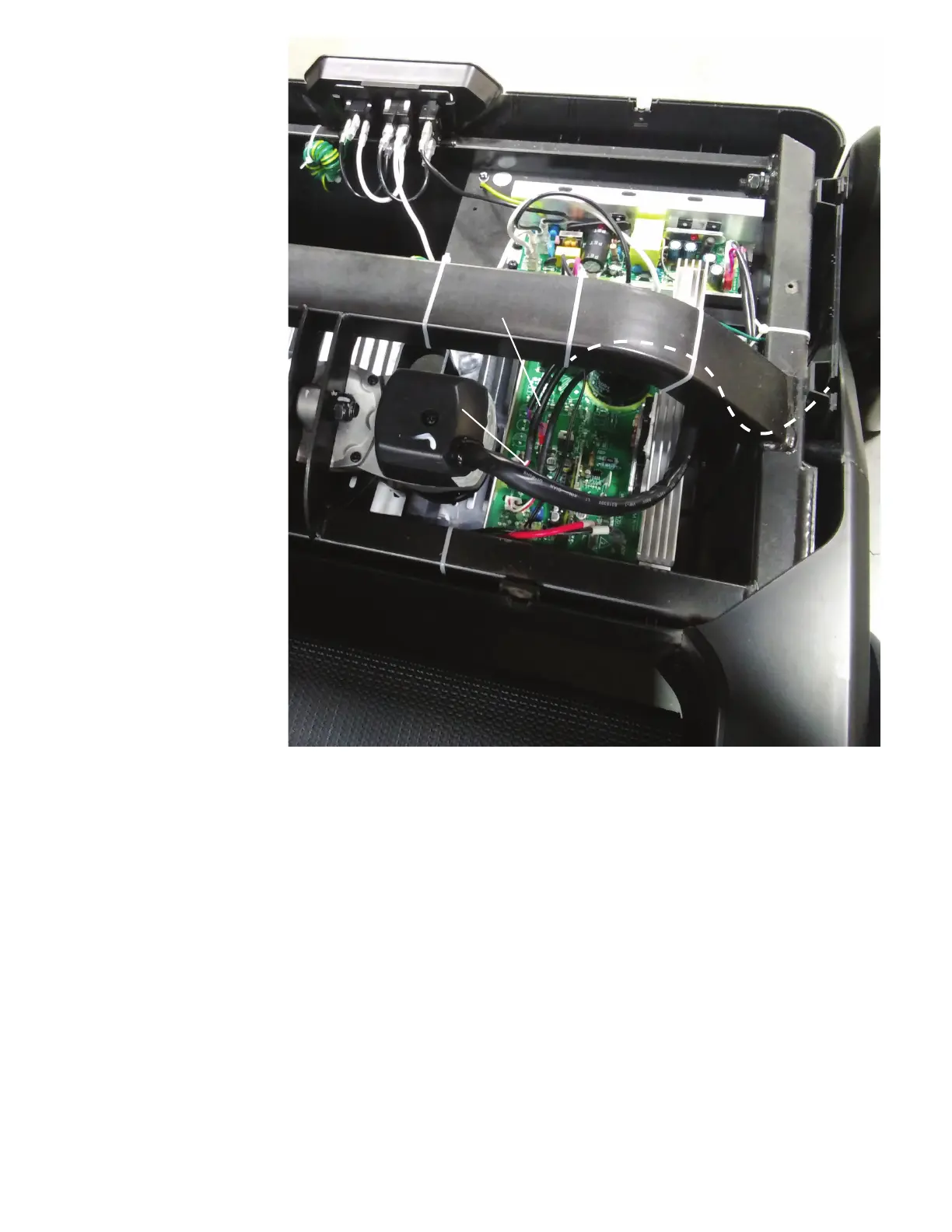

Lower Input/
Output (I/O)
Connector
Lower Input/Output
(I/O) Cable
