1. Unplug the power cord from the machine and wait 5 minutes. Place the
power cord in a secure location.
!
To reduce the risk of electrical shock or unsu-
pervised usage of the equipment, always unplug
the power cord from the wall outlet and wait 5
minutes before cleaning, maintaining or repair-
ing this machine. Place the power cord in a
secure location.

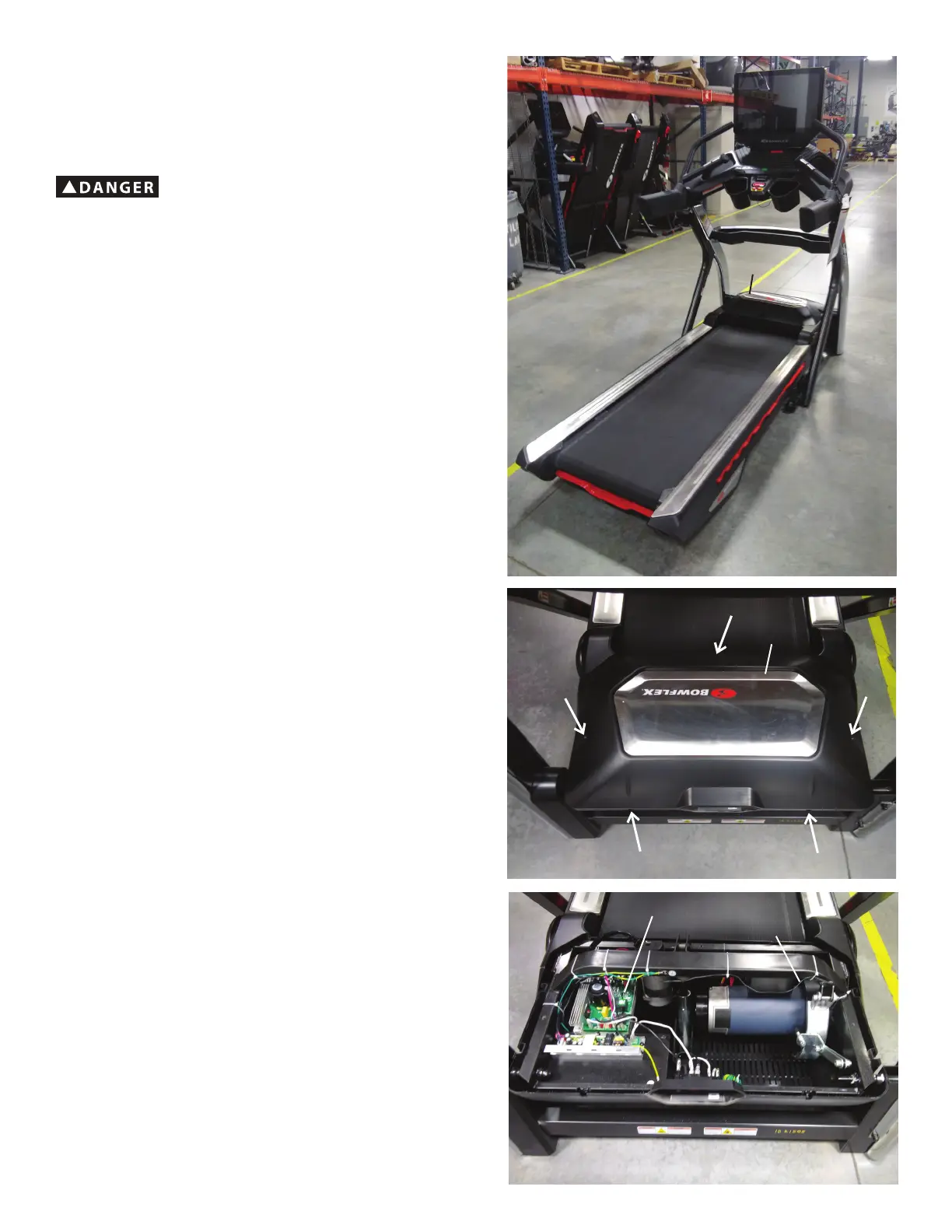

2. Using a #2 Phillips screwdriver, remove the 5 screws (indicated by ar-
rows) that secure the Motor Cover and remove it.
Note: To assist with re-assembly of the Motor Cover, the two front screws
are short.
Note: Your machine may not match the images provided exactly.
Motor Cover
Motor Cover
Motor Control Board (MCB)
Speed Sensor Cable
