Bowflex Treadmill 22 - Page 61

61
Speed Sensor
Front Roller

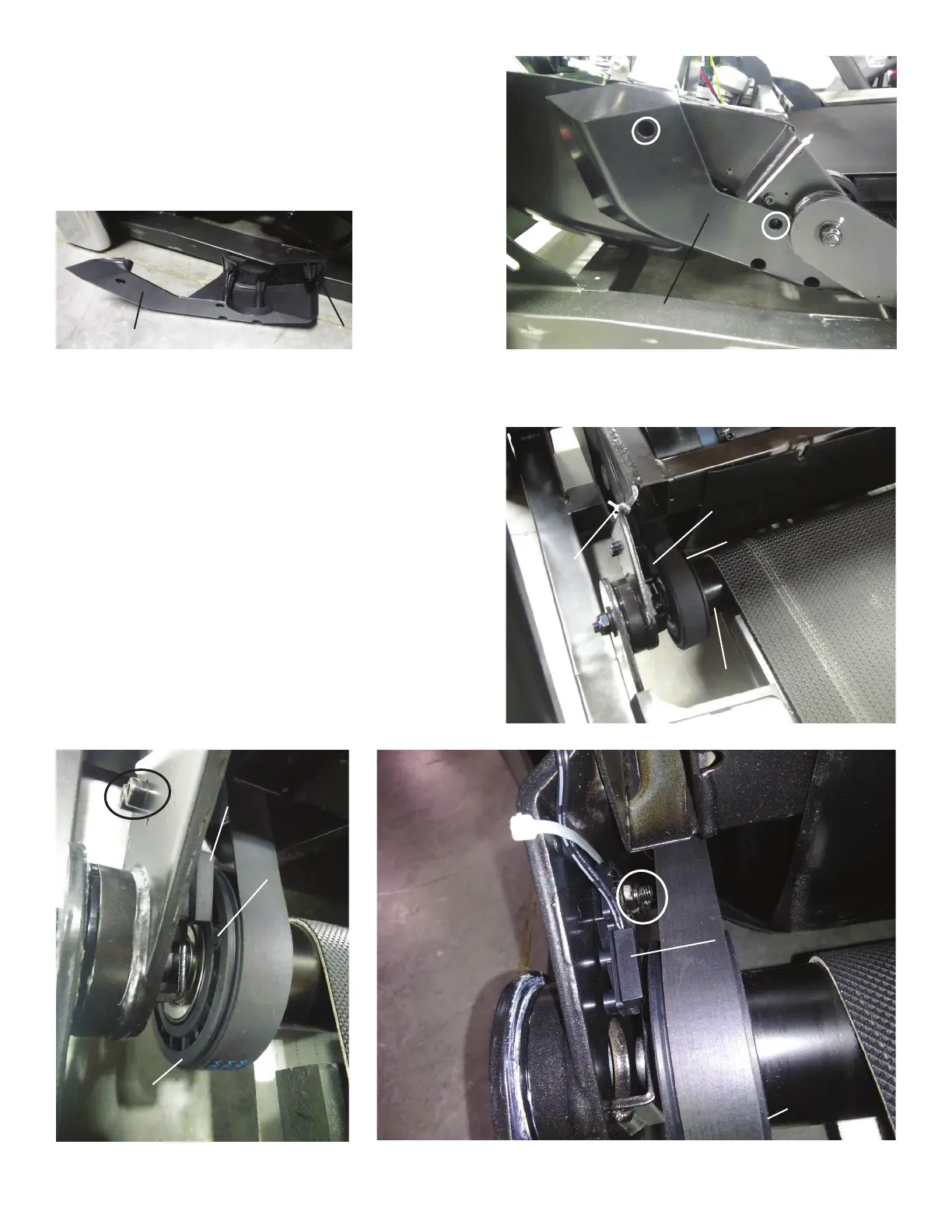

14. Using a #2 Phillips screwdriver, remove the 2 screws (indicated by
ovals) that attach the Outside-Lower-Left Motor Cover Shroud.
15. Carefully remove the Outside-Lower-Left Motor Cover Shroud, with
the Inside-Lower-Left Motor Cover Shroud still attached to it, from the
Frame.
16. Using a 5mm hex wrench from the outside and a 10mm wrench on the
inside of the frame, remove the hardware (indicated by ovals, below) that
secures the Speed Sensor Assembly.
Drive Pulley
Zip-Tie
Motor Cover Shroud,
Outside-Lower-Left
Motor Cover Shroud,
Outside-Lower-Left
Motor Cover Shroud,
Inside-Lower-Left
Speed Sensor
Speed Sensor
Speed
Sensor
Magnet
Drive Pulley
Drive Pulley
