Step 6 Install Pulley
Arms
Parts:
• Right Pulley Arm
• Left Pulley Arm
• Main Assembly
Hardware:
• 4 Washers (3/8")
• 4 Button Head Screws
(3/8" X 3/4")
Tools: 7/32" Hex Wrench

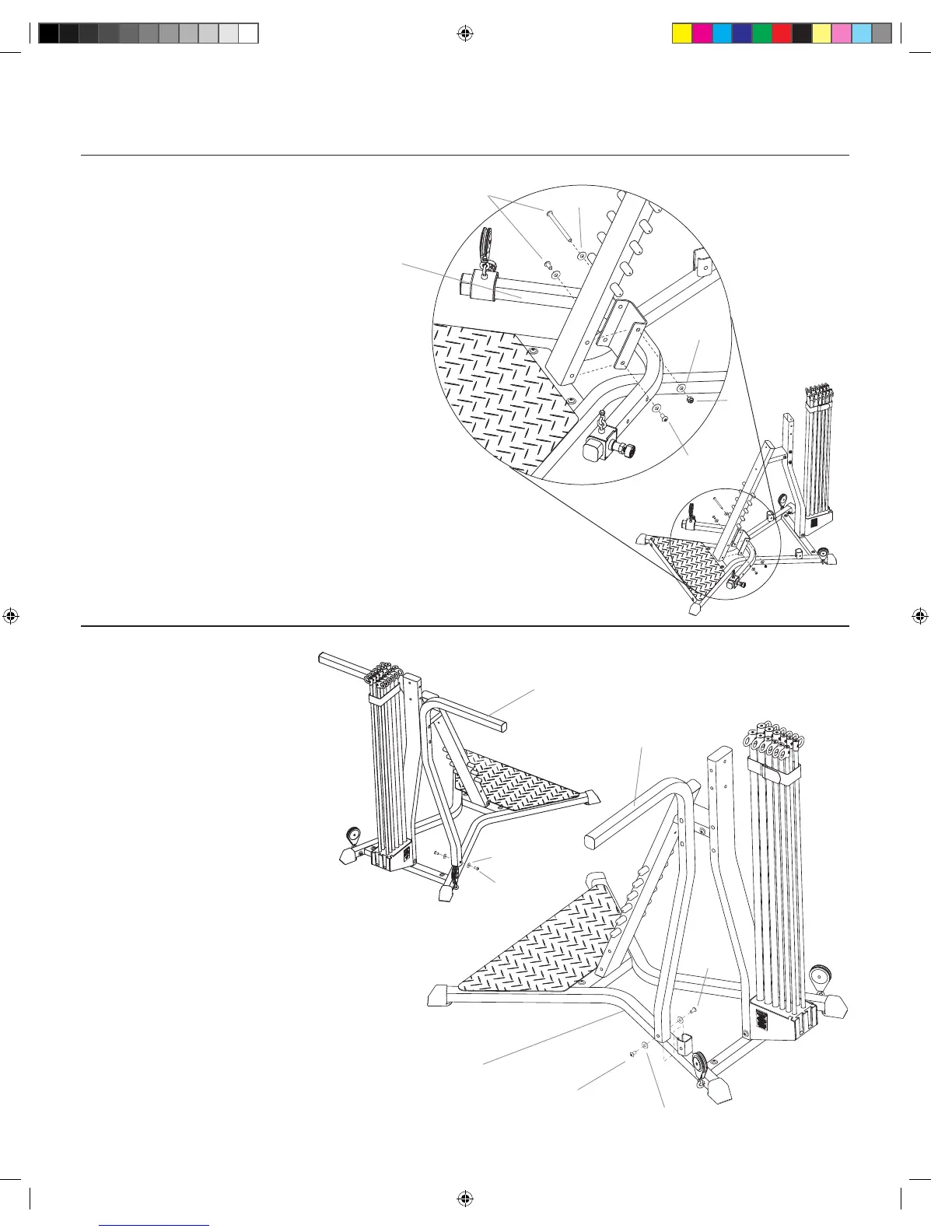

6-1 Slide Left and Right Pulley Arms
onto the connectors on the base
frame as shown.
6-2 Secure Pulley Arms to Base Frame
using screws and washers as shown.
Finger tighten screws
at this time.
Step 5 Install Squat Pulley Frame
Parts:
• Squat Pulley Frame Assembly
• Main Assembly
Hardware:
• 1 Button Head Screw (3/8" X 5")
• 1 Nylock Nut (3/8
")
• 2 Button Head Screws (3/8
" X 1")
• 4 Washers (3/8
")
Tools: 7/32" Hex Wrench & Adjustable
or Socket Wrench
5-1 Place the Squat Pulley Frame behind the Seat
Support Rail and align the top screw holes.
Secure using a 3/8" X 5" screw, washer and
nut in the top hole as shown.
5-2 Install screws and washers into the bottom
holes of the Squat Pulley Frame as shown.
Button
Head
Screw
Flat
Washers
Nylock
Nut
Squat Pulley
Frame
Flat
Washers
Button Head
Screws


Base Frame &
Lower Lat Tower
Assembly
Flat Washers
Button Head
Screw
Button
Head
Screw
Right Pulley Arm
Left Pulley Arm
Button Head
Screws
Washers
