14
Bowflex Xceed
™
Assembly Manual
Step 15 Install Upper Lat Tower Assembly
Parts:
• Upper Lat Tower Assembly
• Main Assembly
Hardware (1:1):
• 6 Button Head Screws (3/8" X 3/4")
• 6 Washers (3/8
")
Tool: 7/32" Hex Wrench

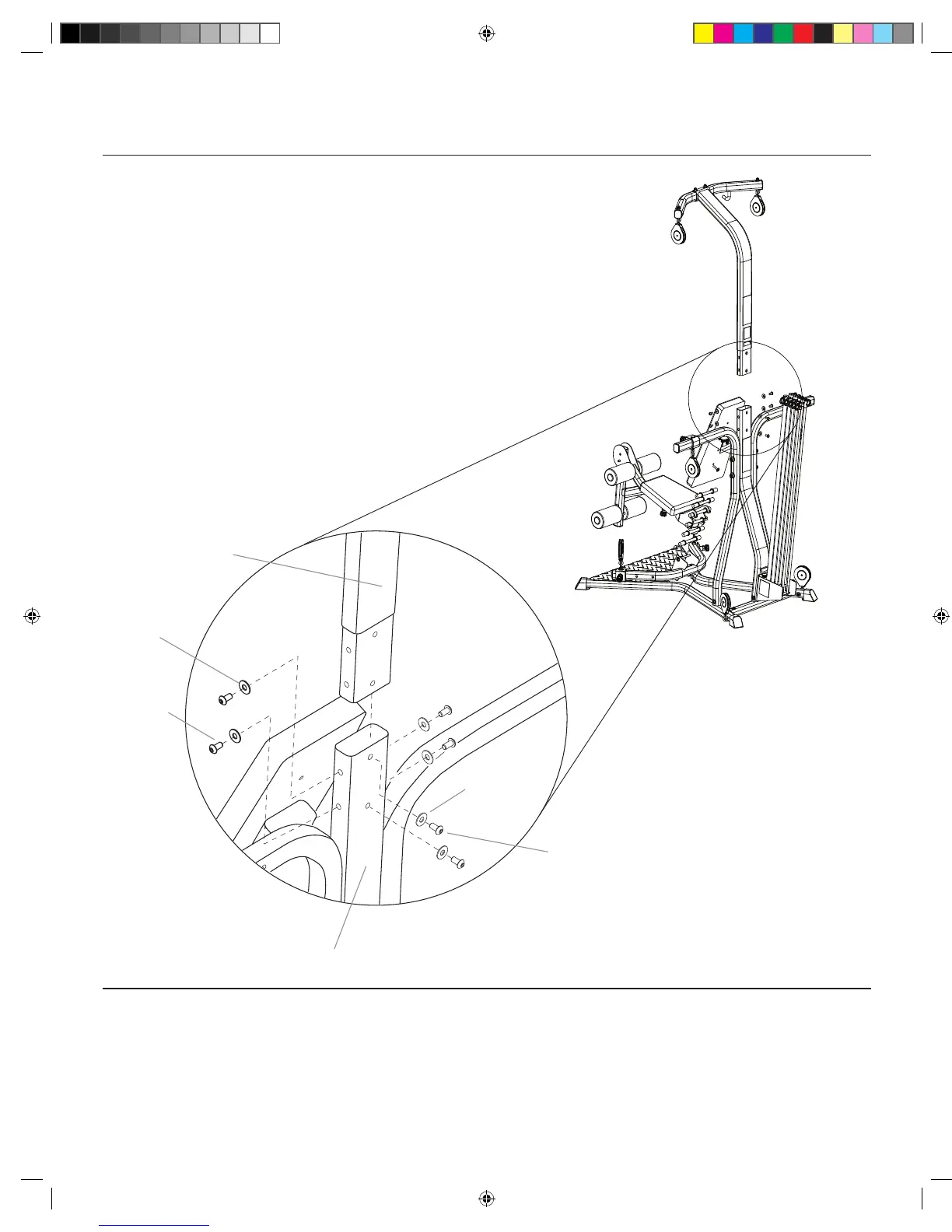

15-1 Position the Upper Lat Tower Assembly
over the Lower Lat Tower Assembly.
15-2 Slide the Upper Lat Tower onto the
Lower Lat Tower and secure with screws
and washers as shown.



Upper Lat Tower
Button Head
Screws
Flat
Washers
Flat
Washers
Button Head
Screws
Lower Lat Tower
Step 16 Tighten Hardware
16-1 Carefully go over the entire Bowflex Xceed™ home gym and tighten all
hardware before proceeding to the next step. Pay close attention to the
hardware installed in Steps 1, 3, 4, and 6.
Assembly Guide
